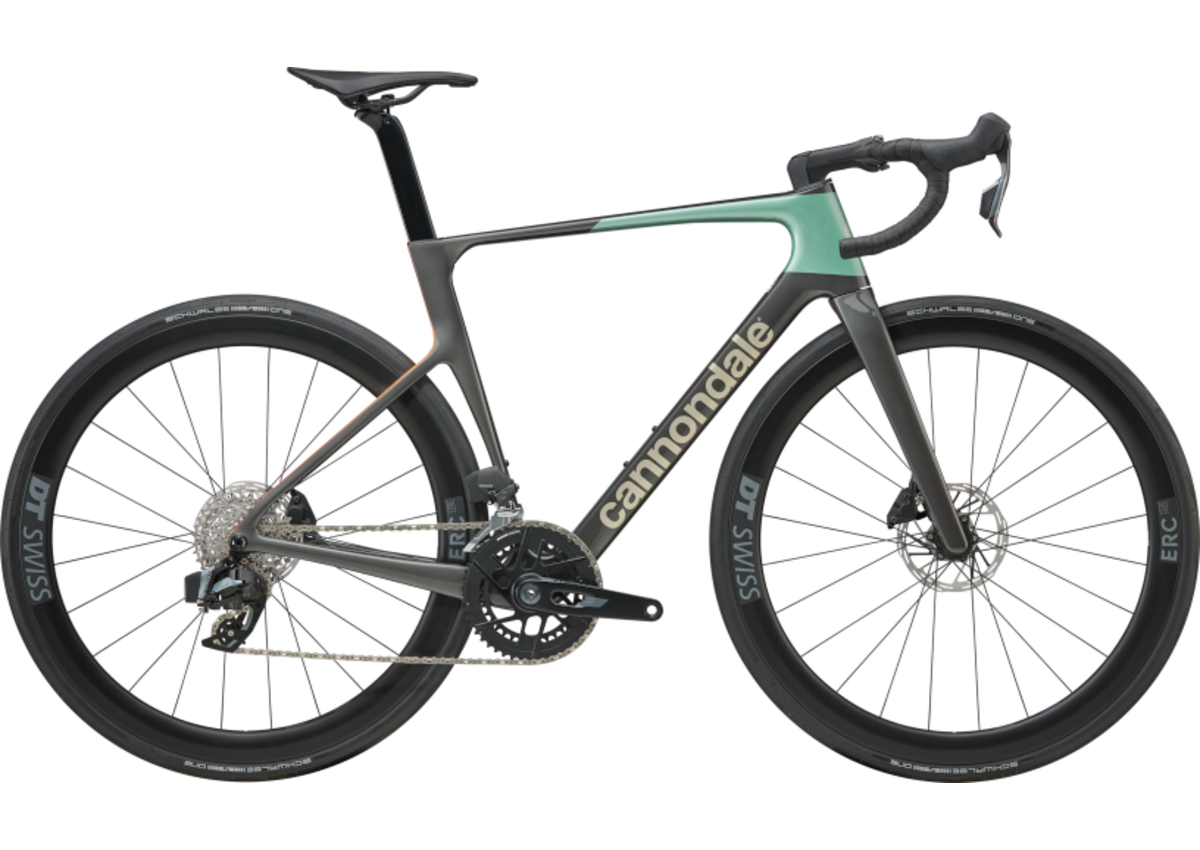

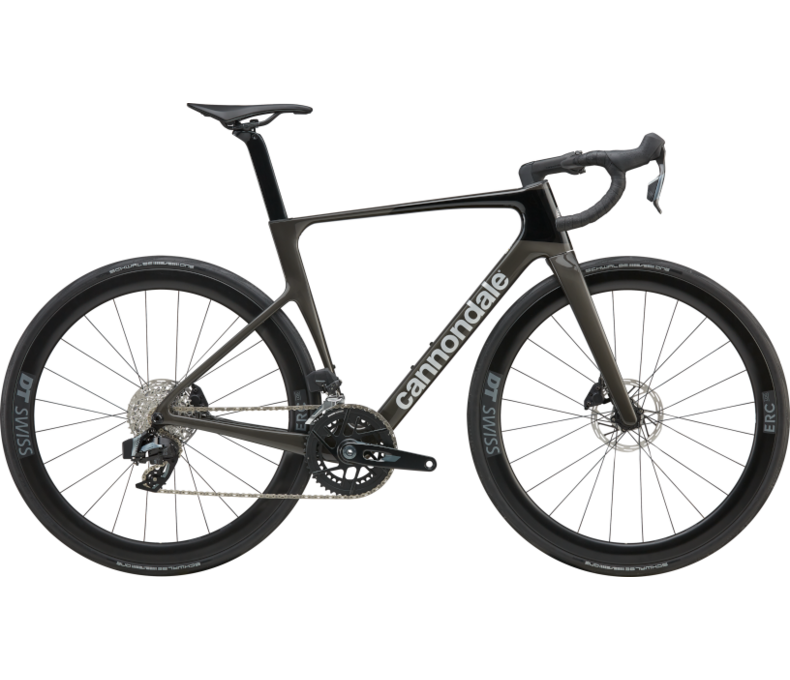

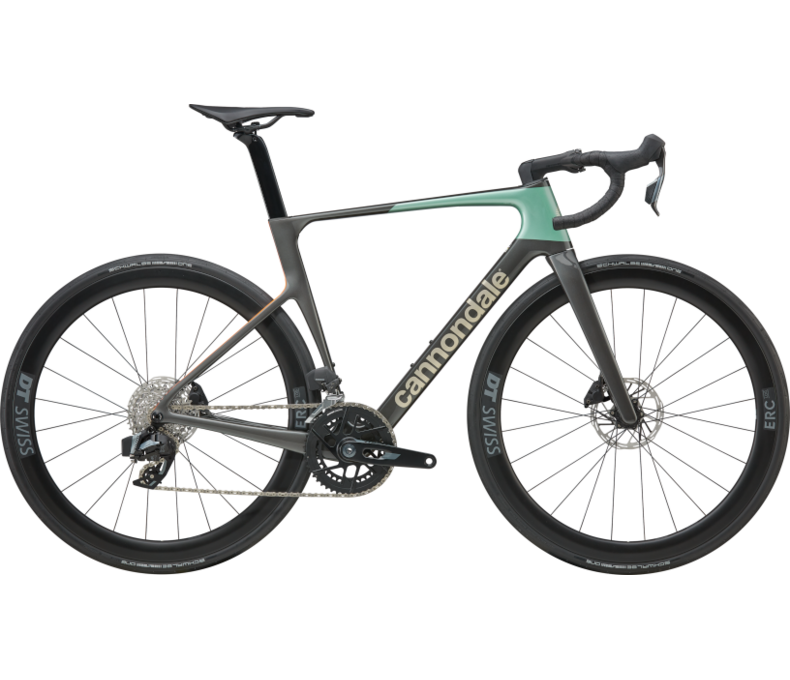

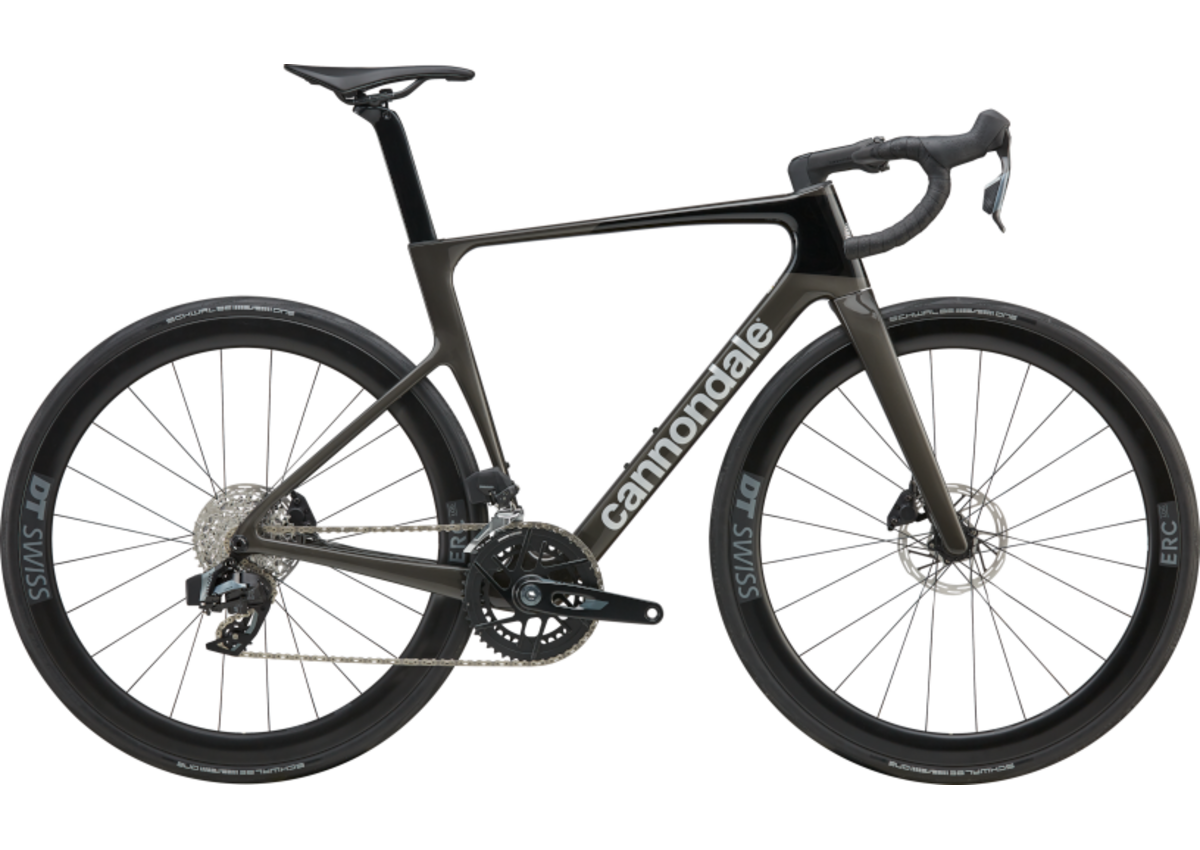

Description
Faster Everywhere
Take it up a level. The lightweight Gen 5 EVO carbon frame rolls on race-ready DT Swiss ERC LOG 45 carbon wheels, balancing light weight with ruthless aero efficiency. With SRAM’s Rival AXS wireless electronic shifting, Vision Trimax Carbon Aero bars and our Conceal stem, the SuperSix EVO 4 is ready to challenge for the top step.
Highlights
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
- SRAM's workhorse Rival AXS group - precise, reliable wireless electronic shifting
- Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R7 saddle - ergonomic comfort with pressure relieving cutout
Specs
| Bottom Bracket | SRAM DUB BSA |
|---|---|
| Frame | SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH |
| Frame Material | Carbon |
| Fork | SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Rims | DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock |
| Spokes | DT Swiss Competition |
| Tires | Schwalbe One TLR, 700x28c, tubeless ready (note: some bikes may ship with 30c tires due to regional availability) |
| Crankset | SRAM Rival AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm) |
| Shifters | SRAM Rival AXS, 2x12-speed |
| Front Derailleur | SRAM Rival AXS |
| Cassette/Freewheel | SRAM Rival XG-1250, 10-36, 12-speed |
| Chain | SRAM Rival, 12-speed |
| Brakes | SRAM Rival AXS hydraulic disc, 160/160mm PaceLine centerlock rotors |
| Brake Levers | SRAM Rival AXS hydraulic disc |
| Handlebars | Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61) |
| Tape/Grips | Cannondale Bar Tape, 3.5mm |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm) |
| Headset | Integrated, 1-1/8" - 1-1/4" |
| Seatpost | Cannondale C1 Aero 40 Carbon V2, 0mm offset (44-54cm), 15mm offset (56-61cm) |
| Saddle | Fizik Vento Antares R7, 140mm |
| Accessories & Extras | Tubeless valves, SRAM AXS charger, Conceal Stem accessory mount |
* Subject to change without notice.
