Description

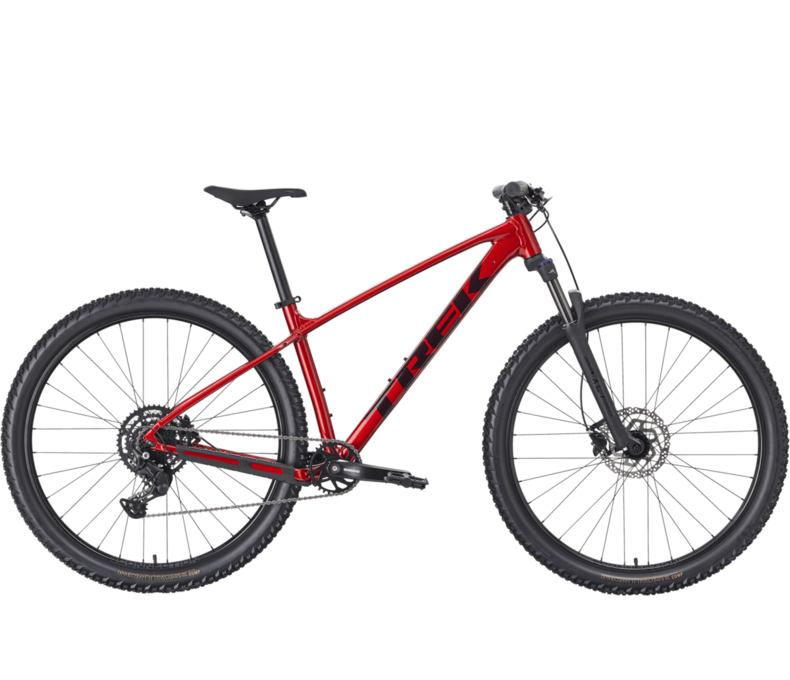

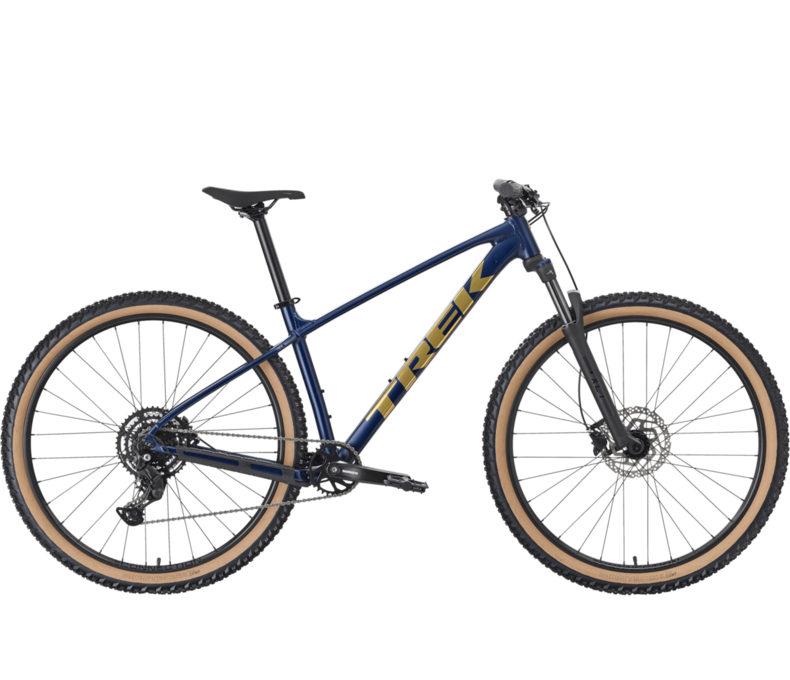

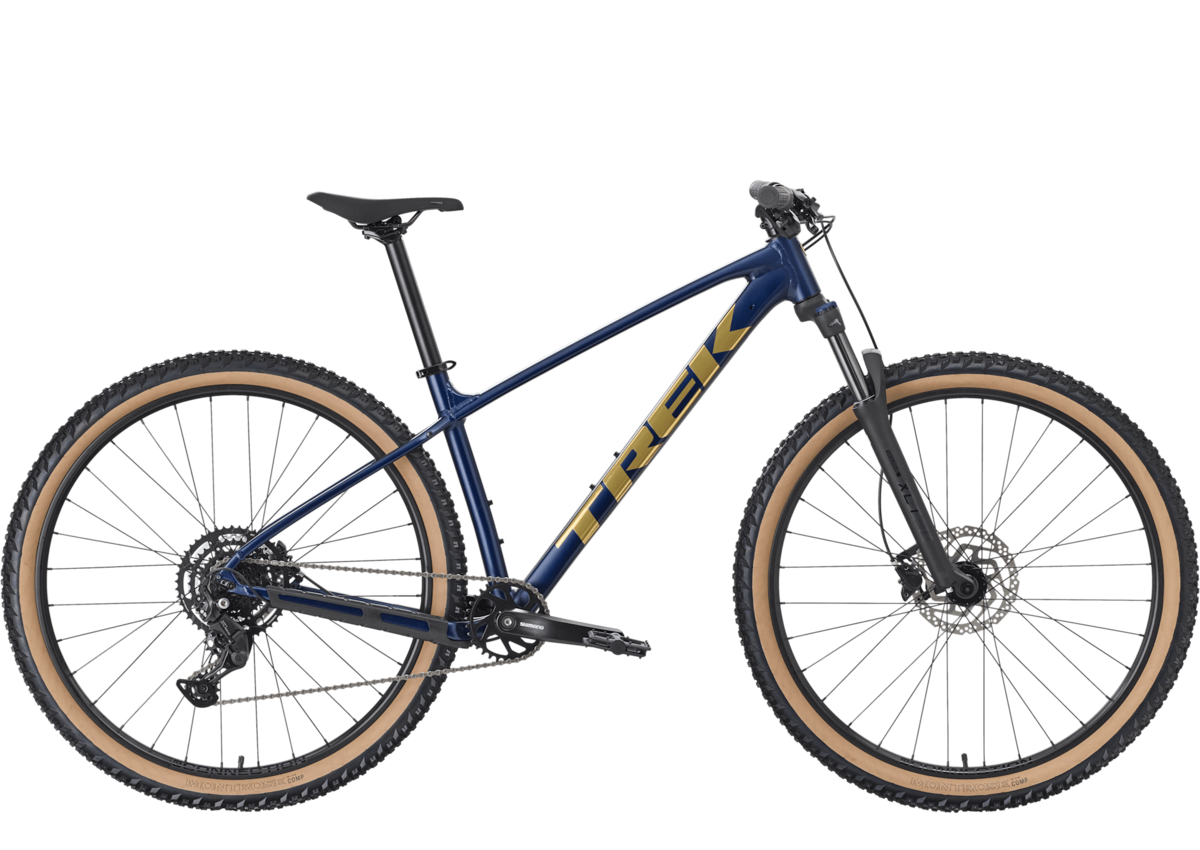

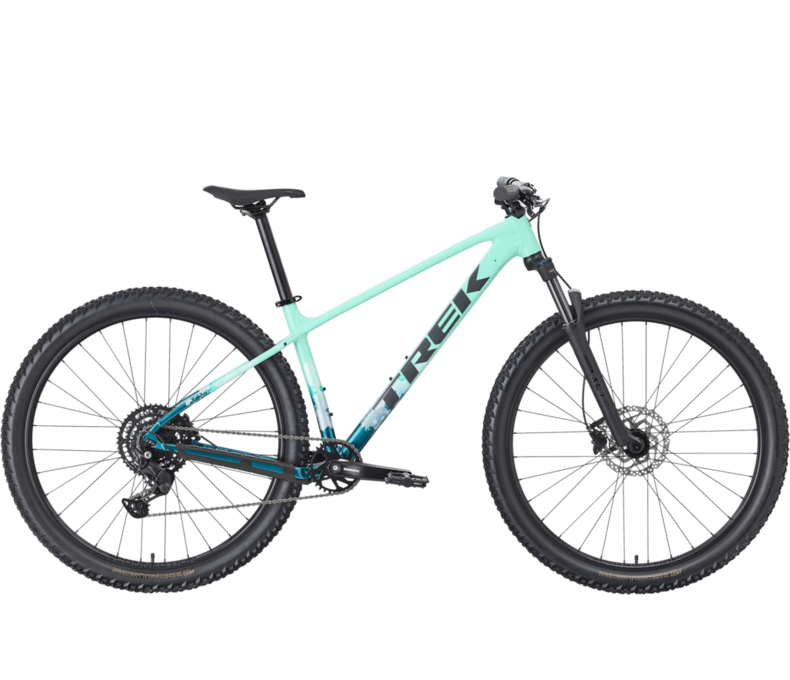

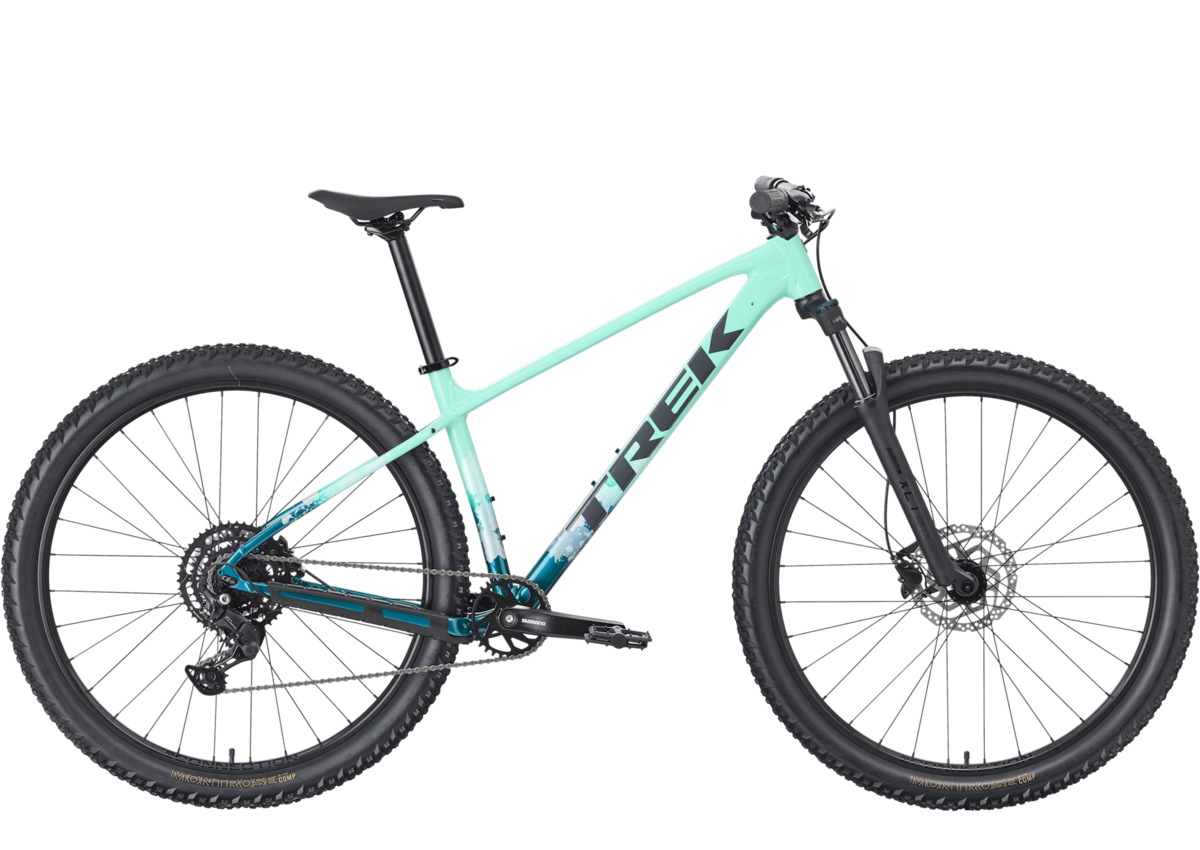

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Wheel size:
X-Small – Small: 27.5-inch
Medium – XX-Large: 29-inch
Specs
| Frame | Alpha Silver Aluminum, internal routing (derailleur + dropper), rack & kickstand mounts, 135×5 mm ThruSkew; XS has curved top tube. |
|---|---|
| Fork | SR Suntour XCT 30 coil, preload + hydraulic lockout X-Small: 27.5", 42 mm offset, 80 mm travel Small: 27.5", 42 mm offset, 100 mm travel Medium / Medium-Large / Large / X-Large: 29", 46 mm offset, 100 mm travel. |
| Rims | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Hubs | Front: Formula DC-20, alloy, 6-bolt, 100x5mm Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Spokes | 14g stainless steel, black |
| Tires | X-Small, Small: Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''. Medium - XX-Large: Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4'' |
| Bottom Bracket | Shimano, 73mm, threaded cartridge, 122.5mm spindle |
| Crankset | X-Small - Medium/Large: Shimano CUES U4001, 32T, 52mm chainline, 170mm length. Large-XX-Large: Shimano CUES U4001, 32T, 52mm chainline, 175mm length |
| Shifters | Shimano U4000, 9 speed |
| Rear Derailleur | Shimano CUES U4000 |
| Cassette/Freewheel | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Brakes | Shimano MT200 hydraulic disc |
| Rotors | Shimano RT26, 6-bolt, 160mm |
| Handlebars | X-Small: Bontrager alloy, 31.8mm, 5mm rise, 690mm width. Small: Bontrager alloy, 31.8mm, 15mm rise, 720mm width. Medium - XX-Large: Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Tape/Grips | Trek Line Comp, nylon lock-on |
| Stem | X-Small - Small: Bontrager Comp, 31.8mm, 7 degree, 35mm length. Medium - Large: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length. X-Large: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length. XX-Large: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Headset | Semi-integrated, 1-1/8'' |
| Seatpost | X-Small - Medium: Bontrager alloy, 31.6mm, 12mm offset, 330mm length. Medium/Large - XX-Large: Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Pedals | VP-536 nylon platform |
* Subject to change without notice.
