"Built for riders who want a capable, versatile road bike" - Jenson USA
X6 Alloy Frame + Carbon Fork
38mm Tire Clearance
Endurance Geometry

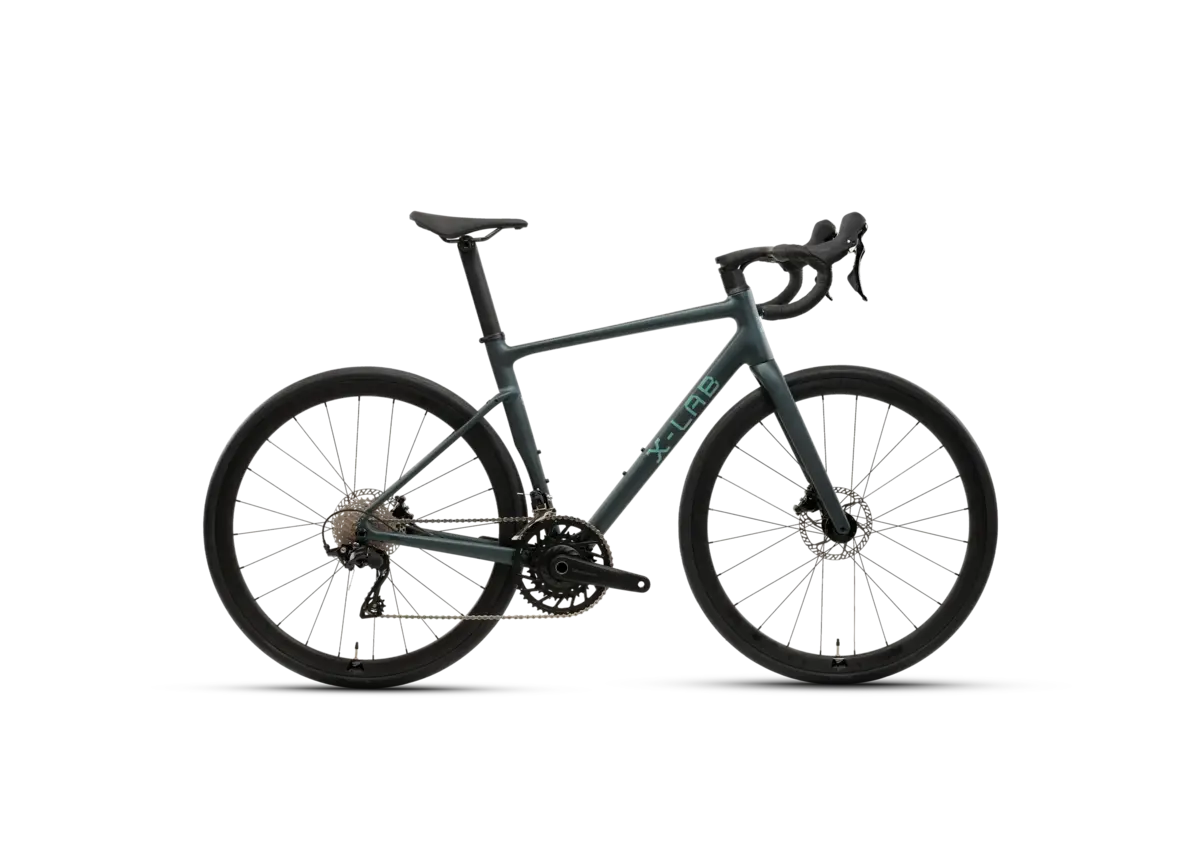

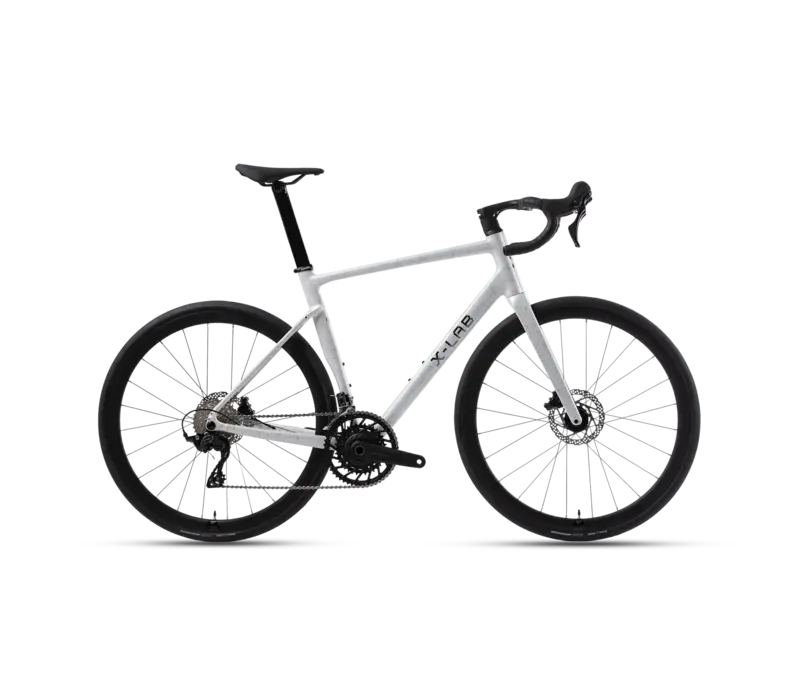

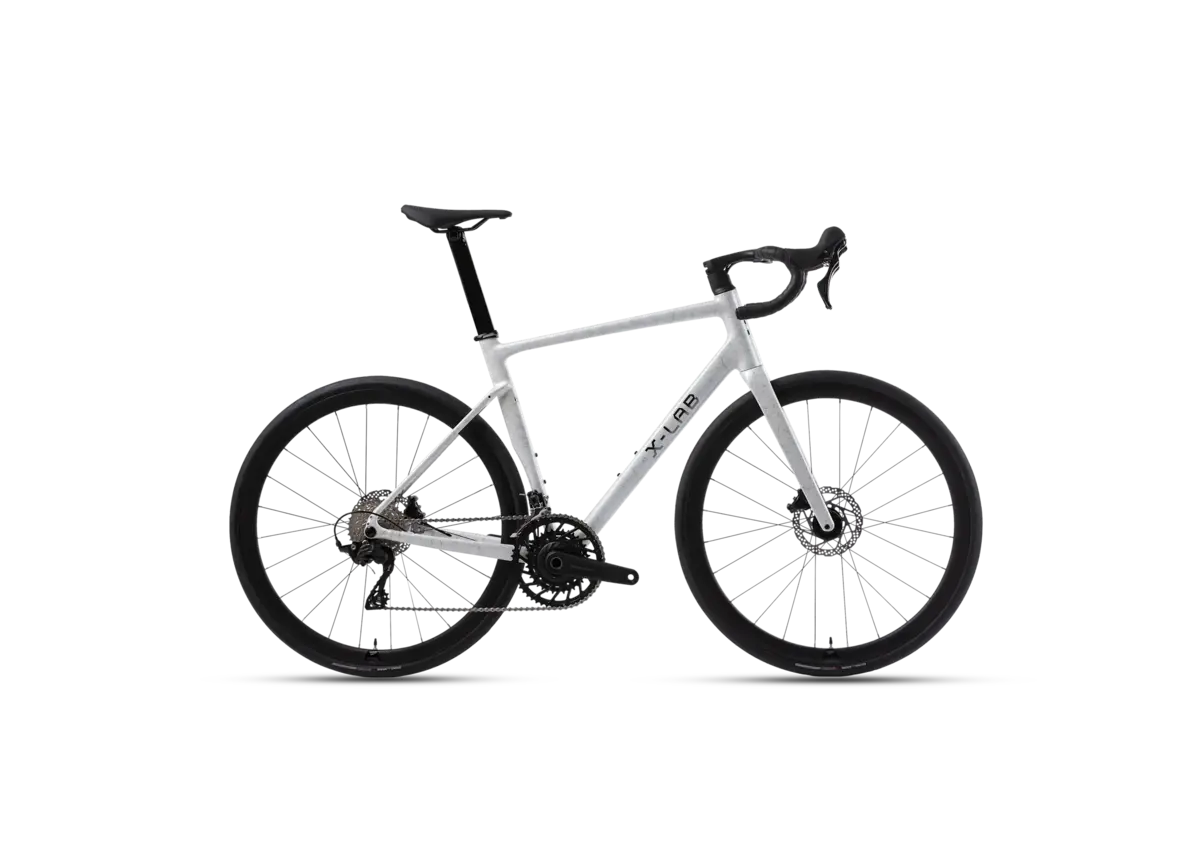

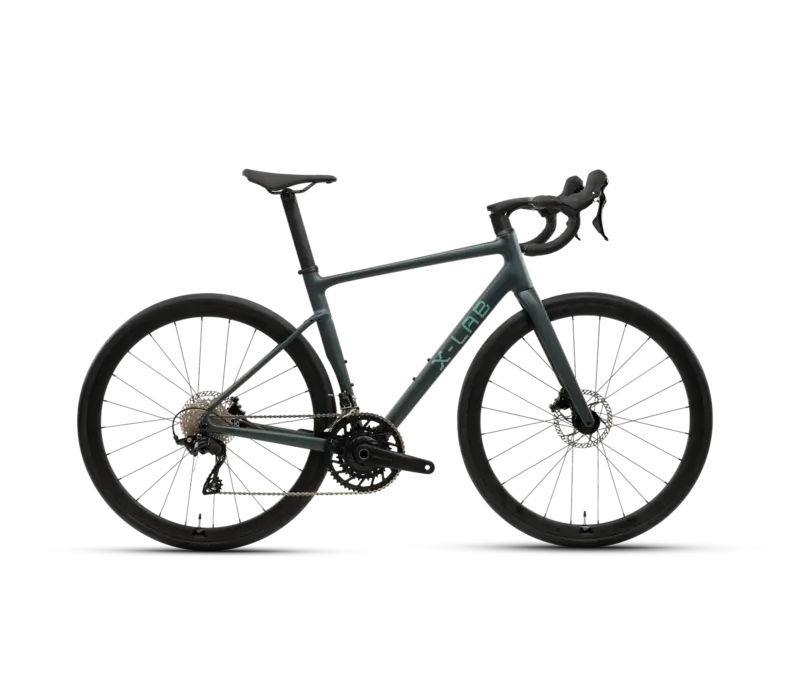

The RS5 delivers the X-LAB riding experience in a versatile and approachable form.
Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable
performance, confident handling, and lasting comfort.
Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to
make every mile feel smooth, responsive, and rewarding.
Integrated Design, Real-World Road Bike
RS5 brings the X-LAB fluent design and engineering language to an alloy platform, with a clean cockpit integration paired with Shimano 105 performance so the bike looks and rides like it belongs far above its category.
Alloy Done the X-LAB Way
A precision-engineered alloy frame delivers the kind of durability and ride quality riders trust. The RS5 is built for long miles, daily commutes, and
everything in between.
Power + Security, Standard
Branta's in-house alloy crankset integrates a power meter and Find My tech, turning the RS5 into a smarter bike to train on, track, and own, without
asking riders to bolt on costly extras.
Key Features:
- Shimano 105 groupset
- 38 mm tire clearance
- Semi-integrated alloy cockpit
- Aero carbon seatpost
Technical Specifications:
FRAME
XDS X6 Alloy Frame, UDH Compatible
FORK
XDS Carbon Fork, 100x12mm Thru-axle
HANDLEBAR / STEM
Branta Alloy Integrated
SEATPOST
XDS Carbon Seatpost, Aero Profile
REAR DERAILLEUR
Shimano 105 RD-R7100
FRONT DERAILLEUR
Shimano 105 FD-R7100
SHIFTERS
Shimano 105 ST-R7120
BRAKES
Shimano 105 BR-R7170
CASSETTE
Shimano 105 CS-R7101, 11-34T
CRANKSET
Branta Alloy Power Meter Crankset, 52-36T,
24mm Steel Spindle, Apple Find My Anti-Theft Technology
BOTTOM BRACKET
BSA 24mm
ROTORS
Branta PN28, F:160 R:160mm
CHAIN
Shimano CN-M7100
WHEELSET
Branta A35 SL, Alloy Rims
TIRES
Branta R332, 700x32C, 60TPI
Max Tire Clearance: 38C
SADDLE
Branta R302, Steel Rails
WEIGHT
9.54 kg / 21.03 lbs (Size L)
SIZE OPTIONS
XS / S / M / L / XL
*Continuous Product Improvement
Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.
Geometry & Dimensions
Basic geometry | XS | S | M | L | XL |
|---|
| A — Seat Tube Length | 440mm | 480mm | 510mm | 540mm | 560mm |
| B — Top Tube Length | 515mm | 530mm | 548mm | 568mm | 585mm |
| C — Head Tube Length | 115mm | 135mm | 155mm | 180mm | 205mm |
| D — Seat Tube Angle | 75° | 74° | 74° | 73° | 73° |
| E — Head Tube Angle | 71° | 72° | 73° | 73° | 73° |
| F — Chainstay | 420mm | 420mm | 420mm | 420mm | 420mm |
| G — Wheelbase | 999mm | 1001mm | 1004mm | 1018mm | 1033mm |
| H — Bottom Bracket Drop | 75mm | 75mm | 75mm | 75mm | 75mm |
| I — Stack | 530mm | 553mm | 575mm | 599mm | 623mm |
| J — Reach | 371mm | 375mm | 381mm | 387mm | 394mm |
| K — Front Center | 590mm | 592mm | 596mm | 609mm | 624mm |
| M — Fork Length | 386mm | 386mm | 386mm | 386mm | 386mm |
| O — Stan Over | 725mm | 758mm | 784mm | 810mm | 831mm |
Component geometry | XS | S | M | L | XL |
|---|
| Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
| Trail | 71mm | 65mm | 58mm | 58mm | 58mm |
| Handlebar | 380mm | 380mm | 400mm | 400mm | 420mm |
| Stem | 80mm | 80mm | 100mm | 100mm | 100mm |
| Crankset | 165mm | 165mm | 170mm | 170mm | 172.5mm |
| Seat Post | 300mm | 300mm | 300mm | 400mm | 400mm |
