Description
Faster Everywhere

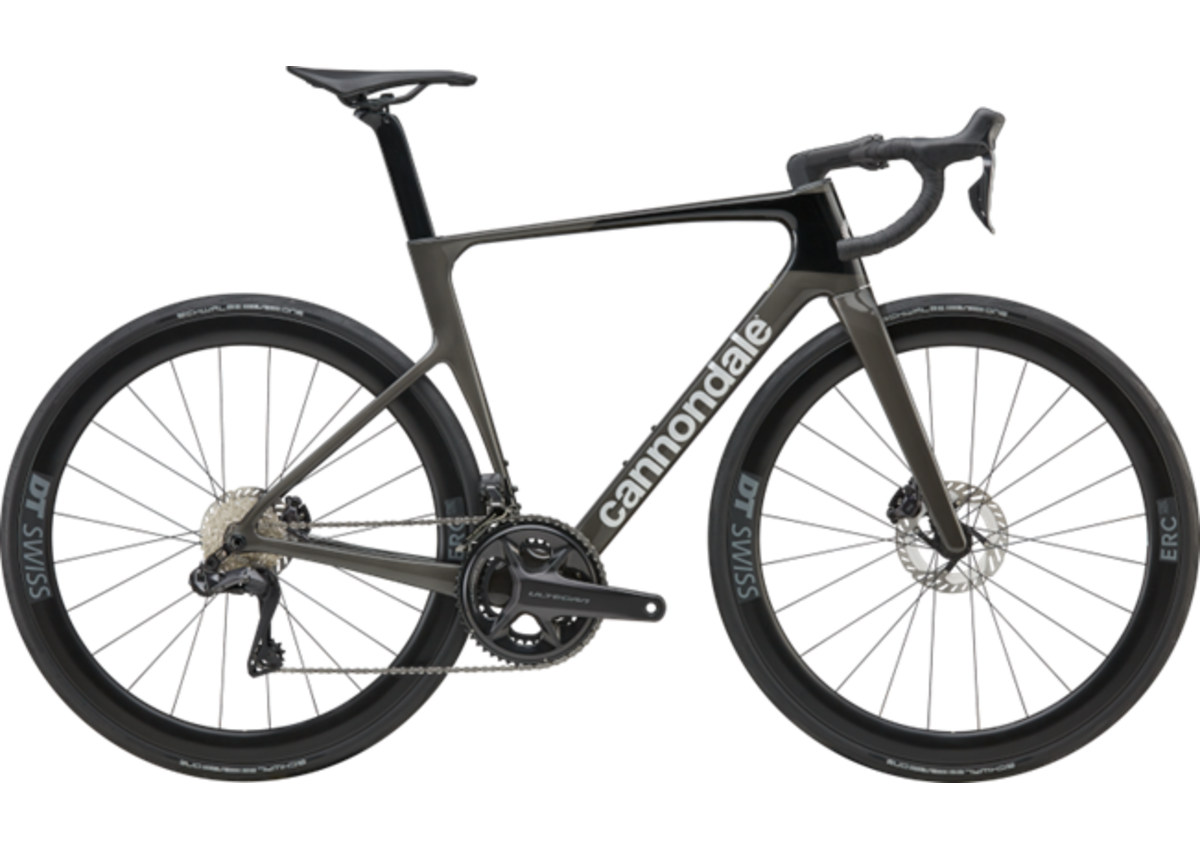

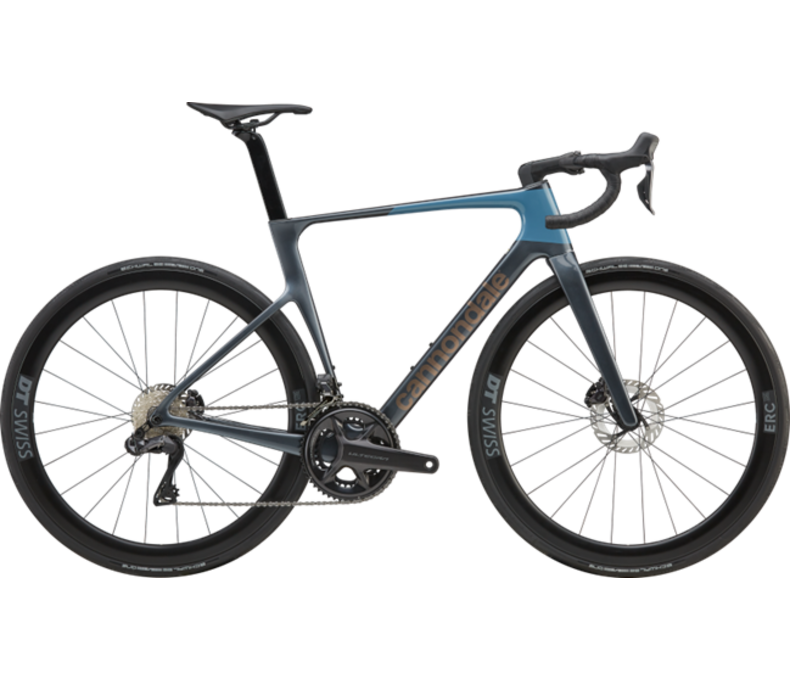

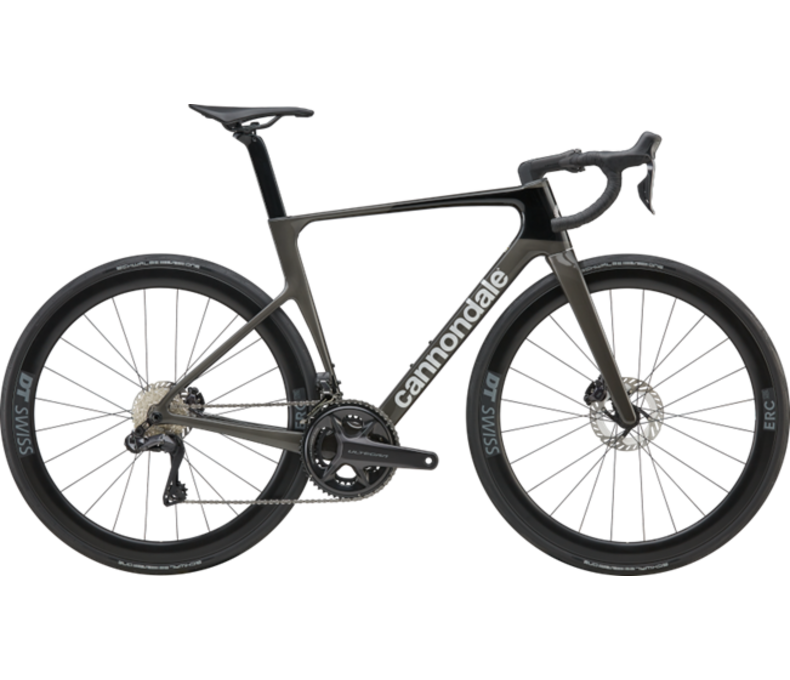

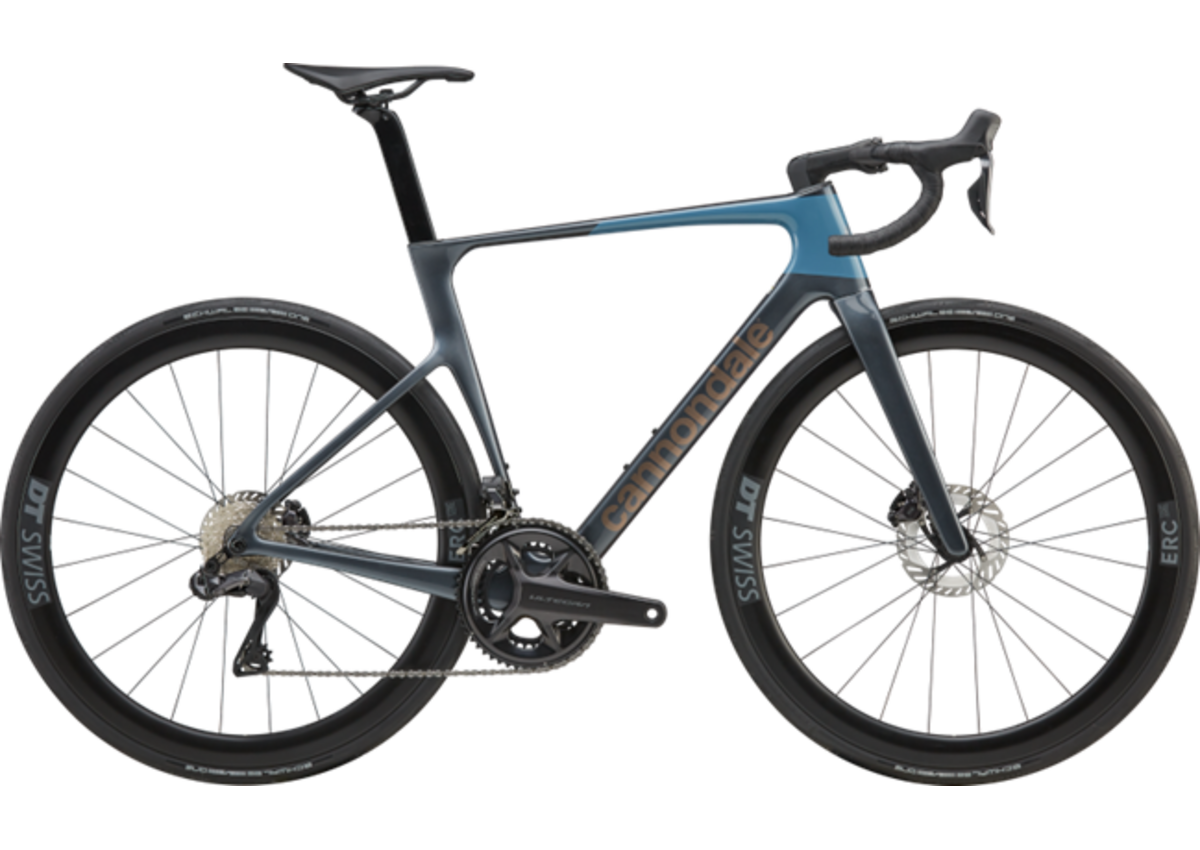

Optimized speed for full-gas racing. The superlight Gen 5 carbon frame rolls on DT Swiss ERC LOG 45 carbon wheels with DT Swiss 370 hubs. Shimano’s Ultegra Di2 handles shifting with electronic precision. Vision Trimax Carbon Aero bars and Cannondale C1 Conceal stem shape a low, efficient front end, while Ultegra hydraulic discs stay predictable when pace compresses and corners come in hot. Built to make the surge stick.
Highlights
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
- Ultegra Di2 electronic 12-speed - Shimano's penultimate high-performance road group
- Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R5 saddle - ergonomic comfort with pressure relieving cutout
Specs
| Bottom Bracket | Shimano BB-RS500, BSA 68 |
|---|---|
| Frame | SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH |
| Frame Material | Carbon |
| Fork | SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Rims | DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock |
| Spokes | DT Swiss Competition |
| Tires | Schwalbe One TLR, 700x28c, tubeless ready |
| Crankset | Shimano Ultegra R8100, 52/36: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm) |
| Shifters | Shimano Ultegra Di2 R8170, wireless, 2x12-speed |
| Front Derailleur | Shimano Ultegra Di2 R8150 |
| Cassette/Freewheel | Shimano Ultegra R8100, 11-30, 12-speed |
| Chain | Shimano Ultegra, 12-speed |
| Brakes | Shimano Ultegra R8170 hydraulic disc, 160/140mm CL800 rotors |
| Brake Levers | Shimano Ultegra Di2 R8170 hydraulic disc |
| Handlebars | Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61) |
| Tape/Grips | Cannondale Bar Tape, 3.5mm |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm) |
| Headset | Integrated, 1-1/8" - 1-1/4" |
| Seatpost | Cannondale C1 Aero 40 Carbon V2, 0mm offset (44-54cm), 15mm offset (56-61cm) |
| Saddle | Fizik Vento Antares R5, S-Alloy rails, 140mm |
| Accessories & Extras | Tubeless valves, Shimano EC300 charging connector, Conceal Stem accessory mount |
* Subject to change without notice.
