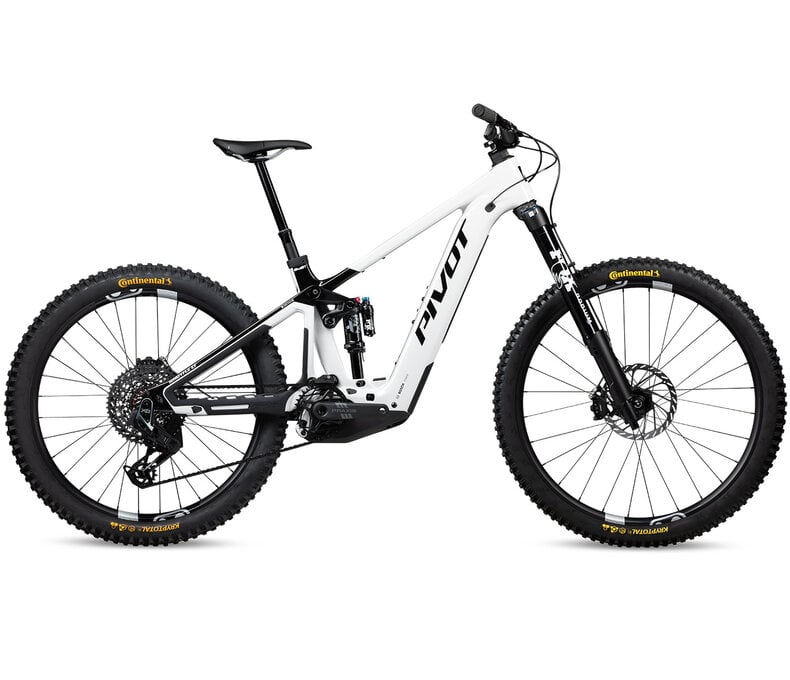

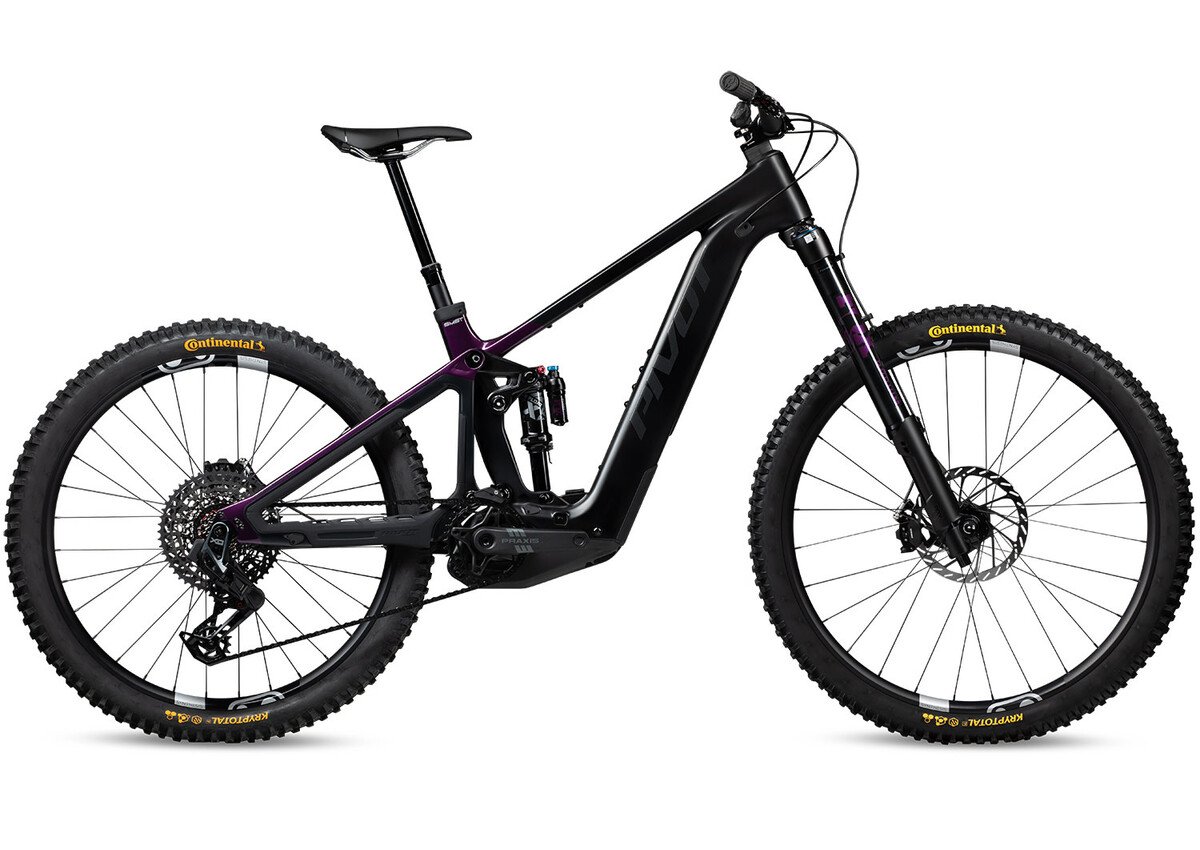

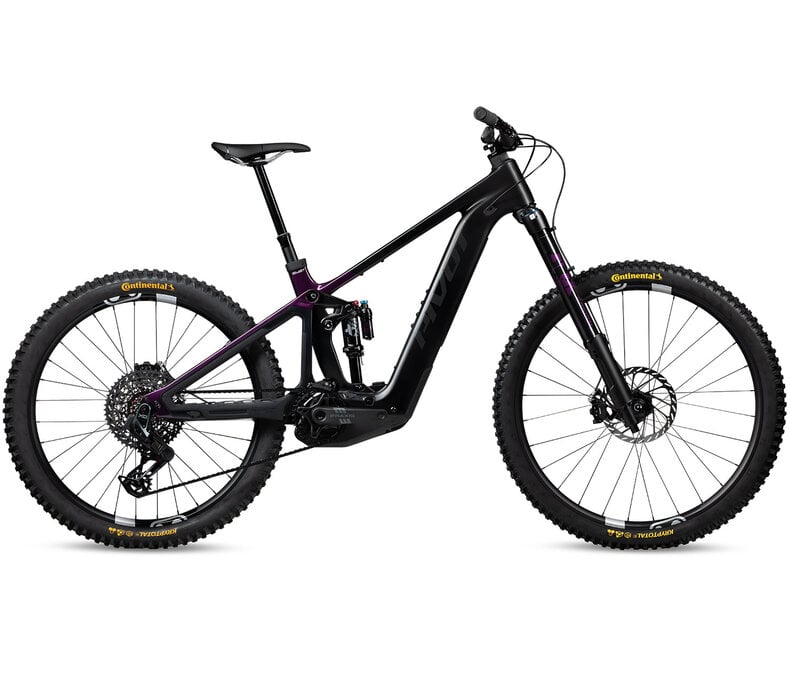

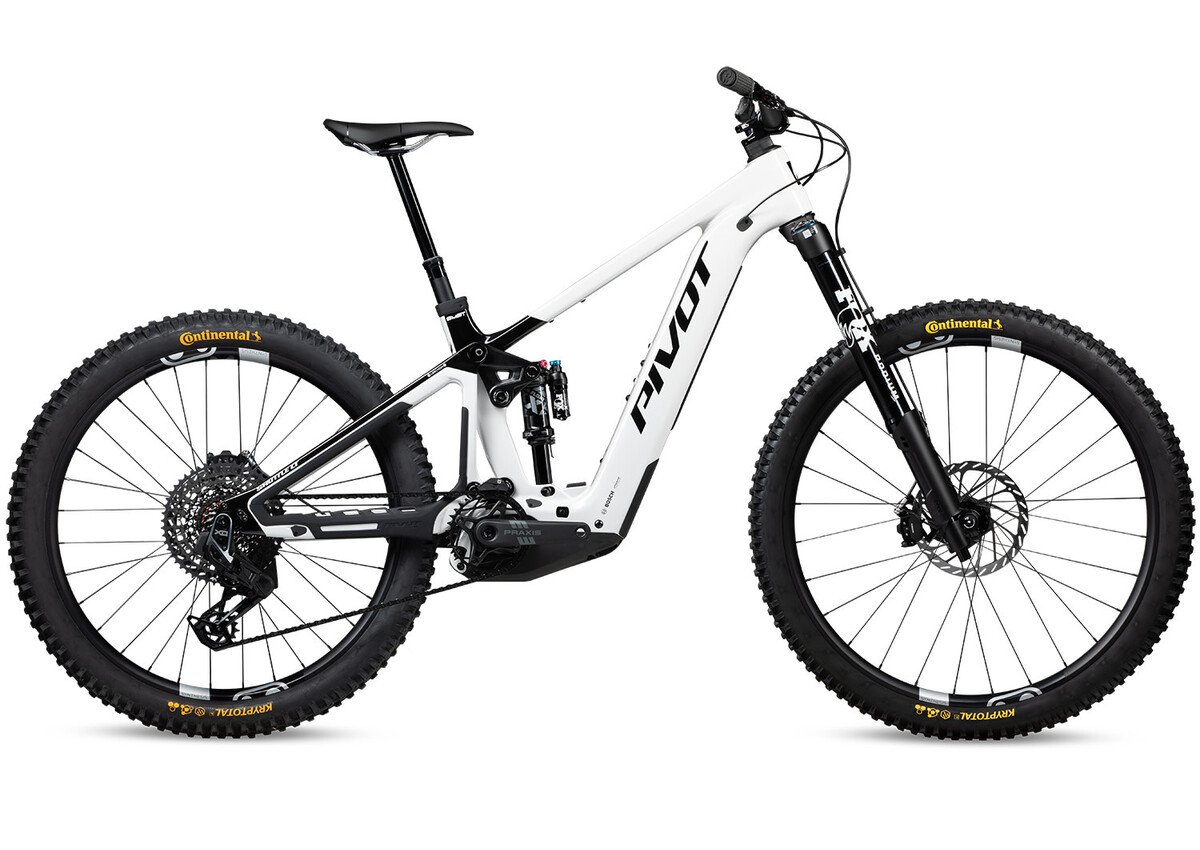

SHUTTLE LT V3 PRO XO EAGLE PERFORMANCE ELITE FLOAT X ALLOY
Description
Electrified Enduro
With an e-enduro bike, not only will you be able to descend at fast speeds, but you'll also be able to climb back to the top for another round. Engineered for relentless terrain, the Shuttle LT delivers the kind of ride feel that defines Pivot's long-travel pedigree, stable at speed, planted on climbs, and incredibly composed when things get steep. The frame is made from carbon fiber and uses 162mm of rear travel and 170mm of front travel. The DW-Link suspension translates every watt of input into efficient forward momentum while maintaining unmatched traction and control across roots, rocks, and blown-out descents. The frame features MX wheels (29" front, 27.5" rear), internal cable routing, a flip-chip, and an adjustable seat angle. With the Bosch Performance Line CX Race drive unit and a PowerTube 800Wh battery, you'll be able to ride faster and farther.
The X0 version of the Pivot Shuttle LT V3 Pro comes with a SRAM X0 Eagle Transmission 12-speed drivetrain. With the 10-52T cassette on the rear, you'll be able to easily navigate technical terrain and difficult climbs. SRAM Maven Silver 4-piston hydraulic disc brakes provide exceptional stopping power so you can slow down and stop with confidence. Crank Brothers Synthesis DH rims are paired with Continental Kryptotal tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OneUp Dropper V3, you'll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Carbon fiber frame with MX wheels (29" front, 27.5" rear), internal cable routing, a flip-chip, and an adjustable seat angle
- Bosch Gen 5 Performance Line CX Race Edition drive unit and a Bosch PowerTube 800Wh
- SRAM X0 AXS Eagle Transmission drivetrain performs exceptionally well in the most demanding terrain
- SRAM Maven Silver 4-piston hydraulic disc brakes provide confidence-inspiring stopping power
- Crank Brothers Synthesis DH wheels paired with Continental Kryptotal 29"/27.5" tires
- OneUp Dropper V3 dropper post quickly lifts and lowers your saddle with the press of a lever
| Frame | Carbon Fiber |
|---|---|
| Fork | Fox Performance Elite Podium 29", 44mm Offset, Grip X2, 170mm Travel |
| Rear Shock | Fox Performance Elite Float X |
| Headset | Pivot Precision Sealed Cartridge |
| Shifters | SRAM AXS Pod Controller |
| Front Derailleur | - |
| Rear Derailleur | SRAM X0 Eagle Transmission 12-Speed |
| Crankset | Praxis Alloy eCranks Flattop 12-Speed |
| Bottom Bracket | - |
| Chain | SRAM X0 Eagle Flattop, 12-Speed |
| Cassette | SRAM GX 1275 Eagle Transmission, 10-52T |
| Brakes | SRAM Maven Silver 4-Piston, SRAM HS2 Centerlock 200/200mm Rotors |
| Wheelset | Crank Brothers Synthesis DH 31mm, 29/27.5, 15x110/12x157mm Hubs |
| Tires | Continental Kryptotal-F 29x2.4" Super Soft, Enduro Casing / Kryptotal-R 27.5x2.6" Soft, Enduro Casing |
| Handlebar | Phoenix Team Carbon, 20mm Rise (S)/35mm Rise (M-XL), 780mm Width |
| Stem | Phoenix Team Enduro V2, 40mm (S-L), 50mm (XL) |
| Grips/Bar Tape | Phoenix Factory Lock-On |
| Seatpost | OneUp Dropper V3, 150mm (S), 180mm (M), 210mm (L-XL) |
| Seatclamp | Bolt-Type |
| Saddle | Pivot Ride E-Bike |
| Intended Use | Enduro |
| Motor | Bosch Gen 5 Performance Line CX Race Edition |
| Battery | Bosch PowerTube 800Wh |
| Display | Bosch Kiox 400C w/ Mini Remote |
Note: Components are subject to change without notice.
