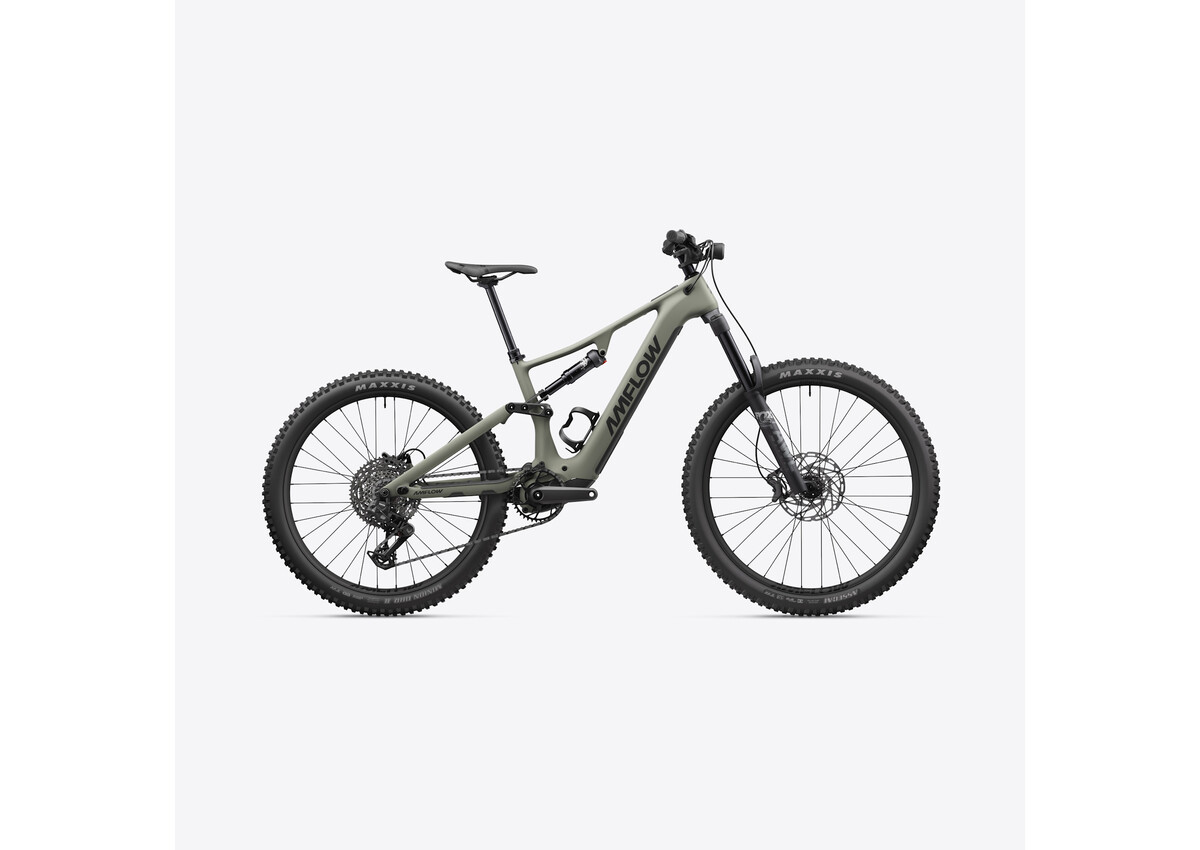

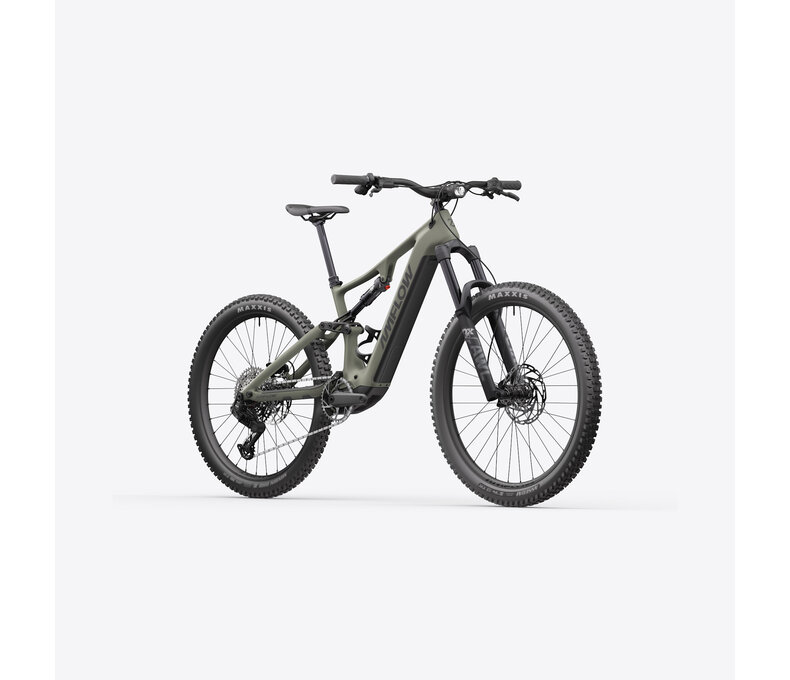

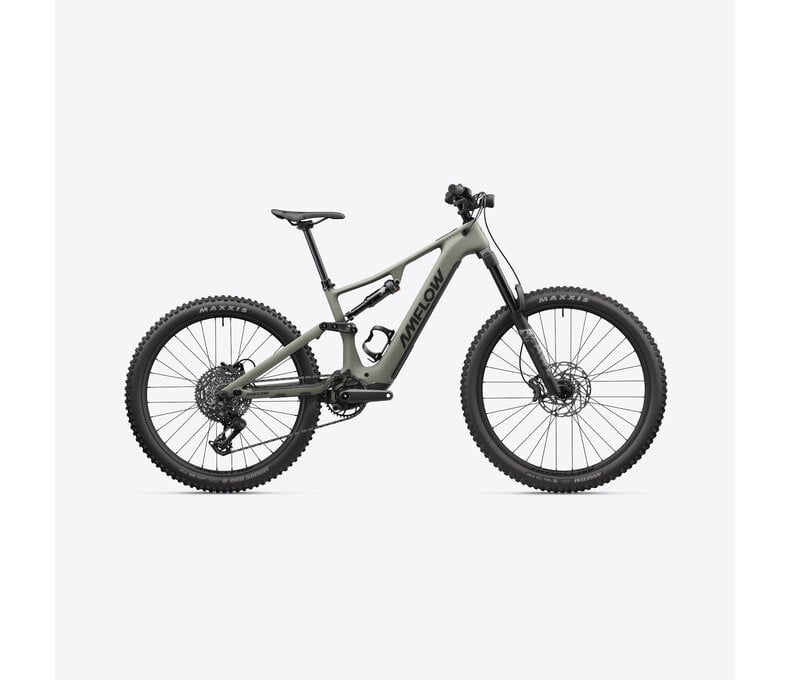

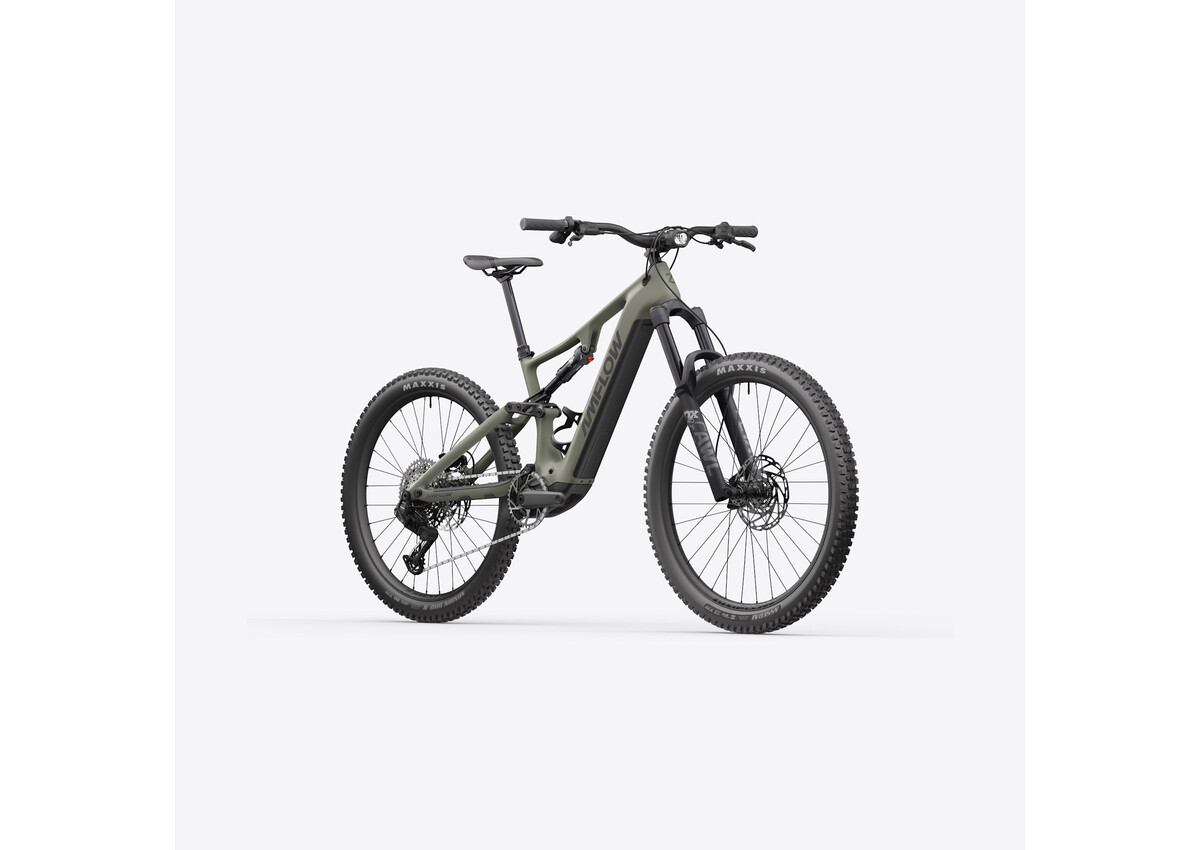

PR Carbon

The Amflow PR Carbon is a full-power carbon eMTB with a removable 800Wh battery and the Avinox M2 Drive Unit (125N·m peak). It has an ultra-light 2.9kg carbon frame, FOX suspension (160mm front), a 29″/27.5″ mullet wheel setup and SRAM S1000 Eagle Transmission. Up to 40 geometry settings let you tune it to the trail, and Apple Find My tracking is built in.

FEATURES:

• Quick Swap, Easy Recharge: With an 800Wh or 600Wh removable battery, Amflow PR enables easy charging and quick swaps for worry-free long-distance riding.
• Ultra-Light Carbon Fiber Frame: At around 2.9kg, it balances low weight with exceptional strength and rigidity, bringing greater stability and composure to every ride.
• Flexible Adjustment, Effortless Control: With up to 40 geometry combinations, it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.

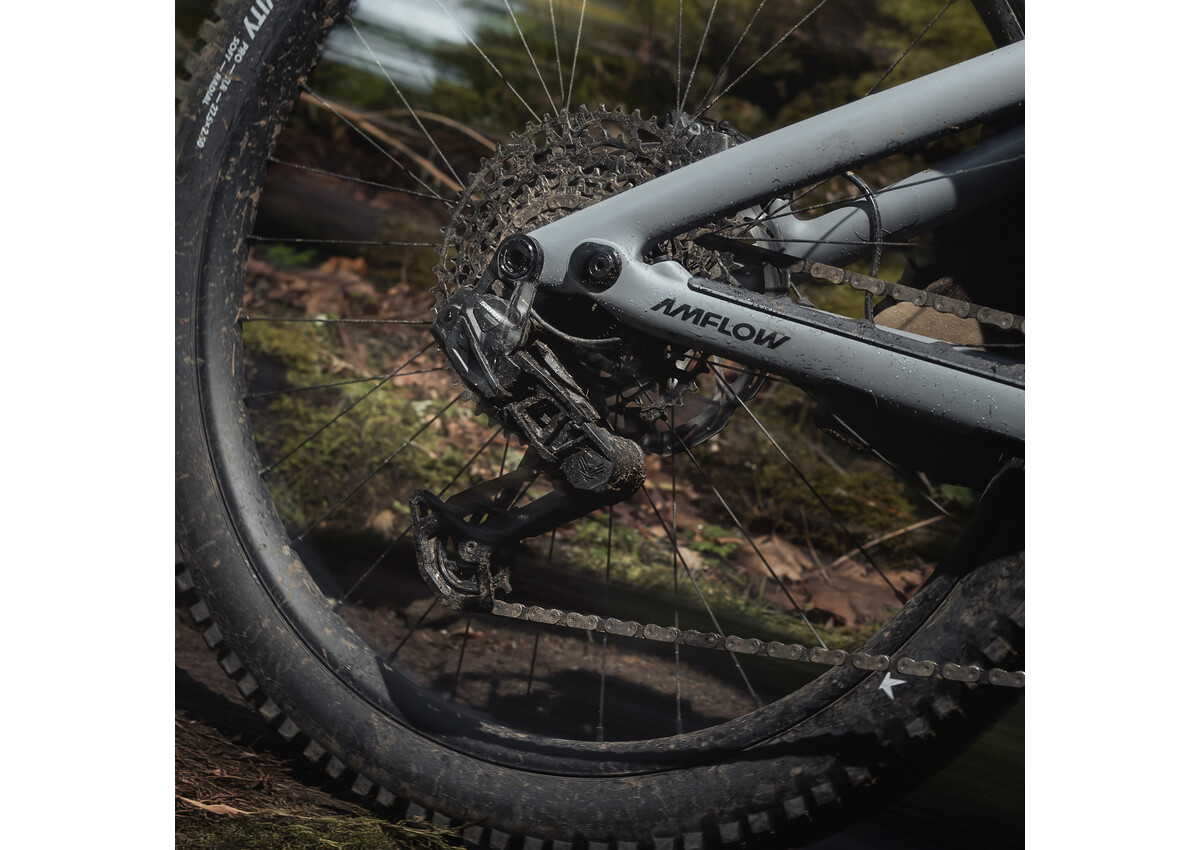

• SmoothShift for Fast Gear Changes: Integrated with the SRAM electronic rear derailleur, the drive system enables the SmoothShift function, allowing you to shift while coasting.
• Apple Find My Tracking: Amflow PR leverages Apple’s vast network to help you track your bike’s location and battery level anytime in the Apple Find My app.

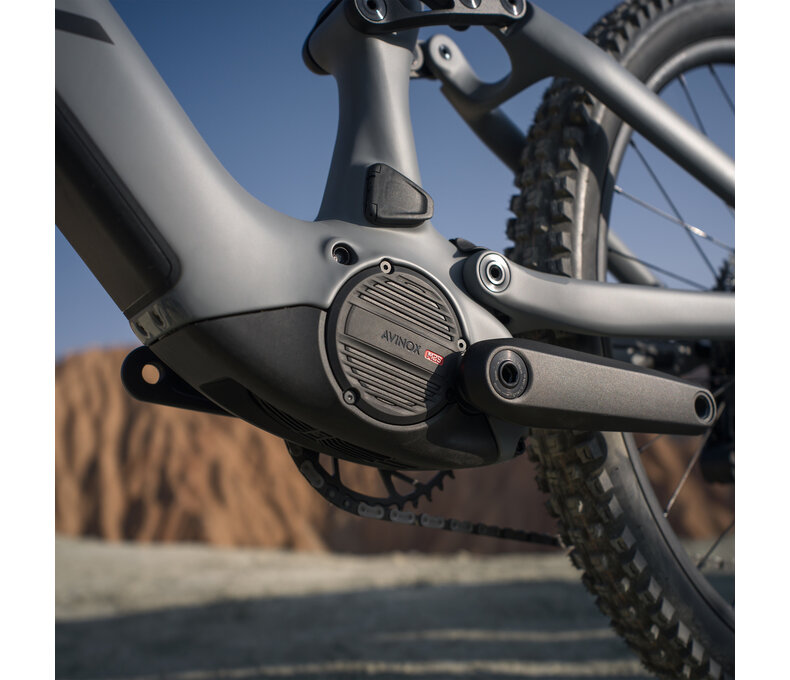

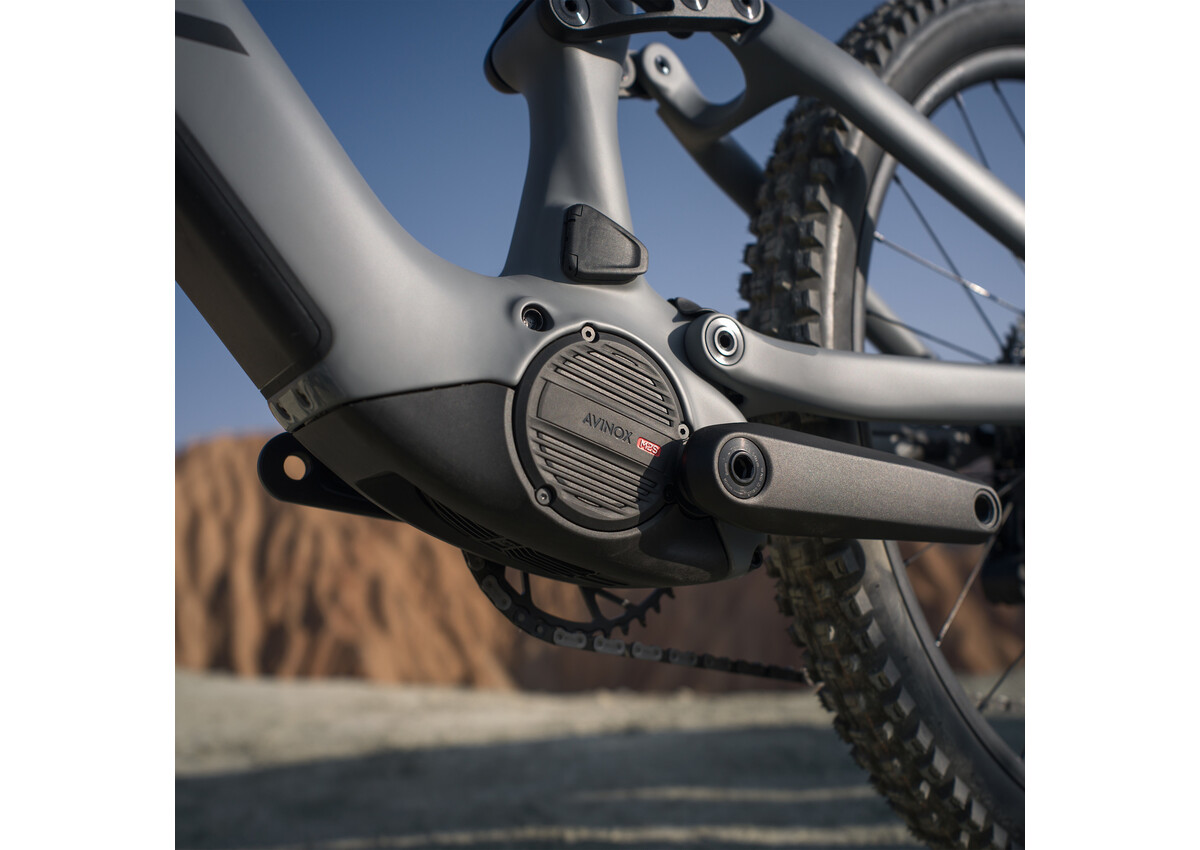

• Avinox M2 Drive Unit: The drive unit is as light as 2.65kg, maintaining its lightweight advantage while achieving steady performance improvements.
• Smart Heart Rate Control: No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.

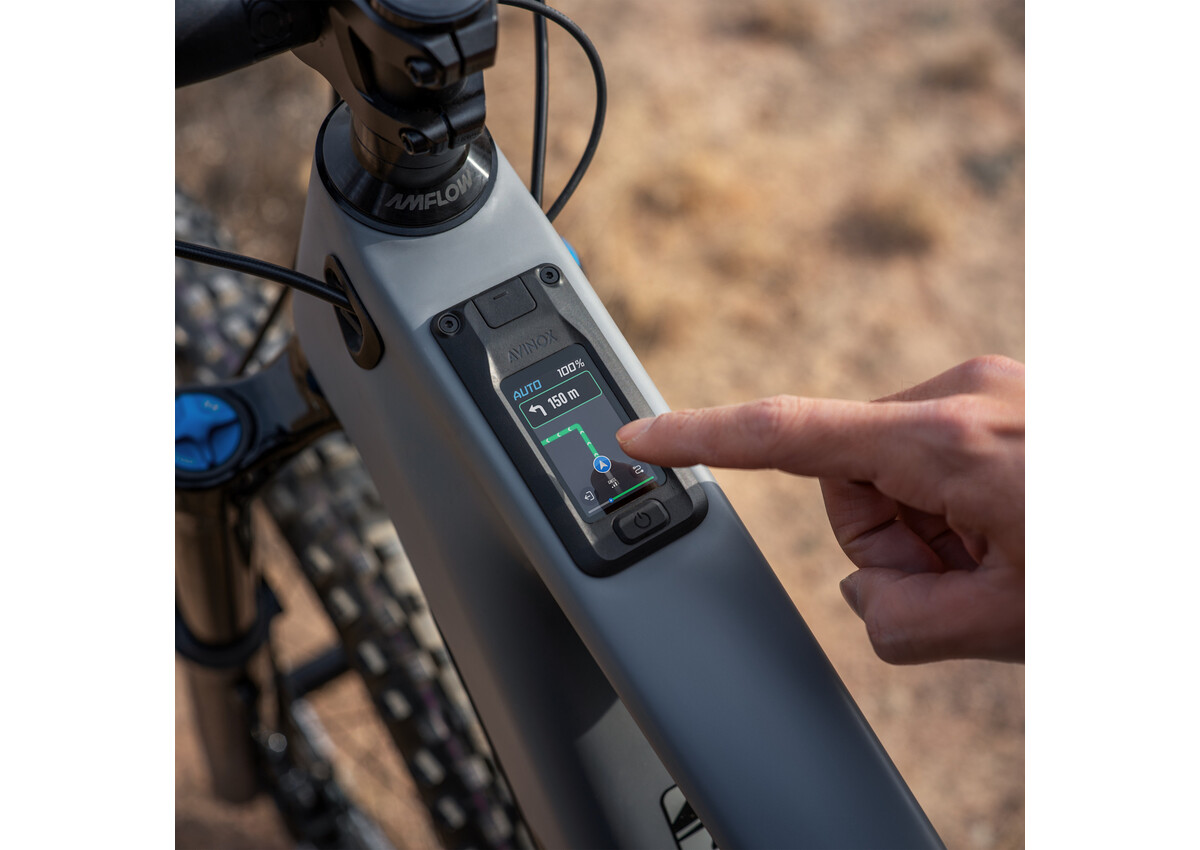

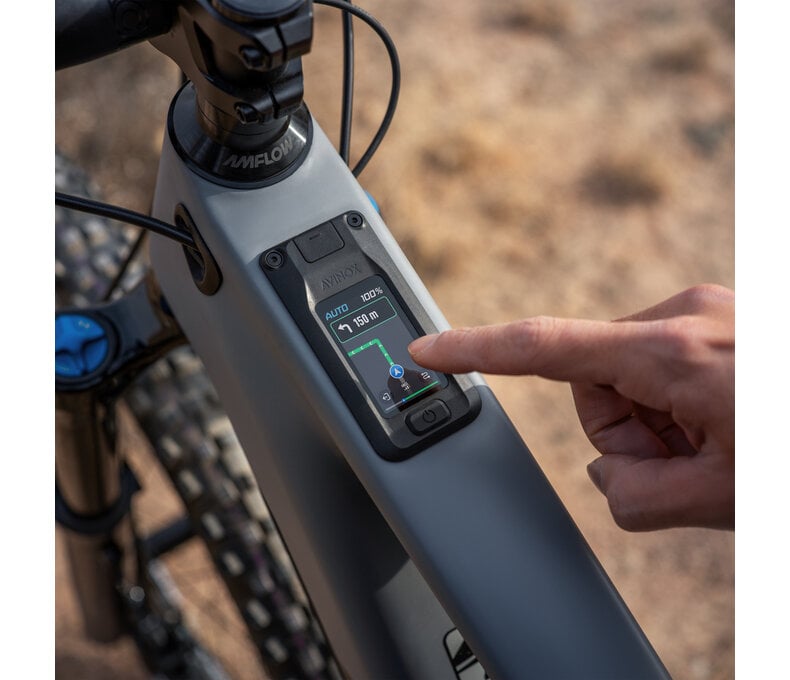

• Offline Navigation, Made Smarter: The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronization and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.

Geometry, Tuned to the Terrain

Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.

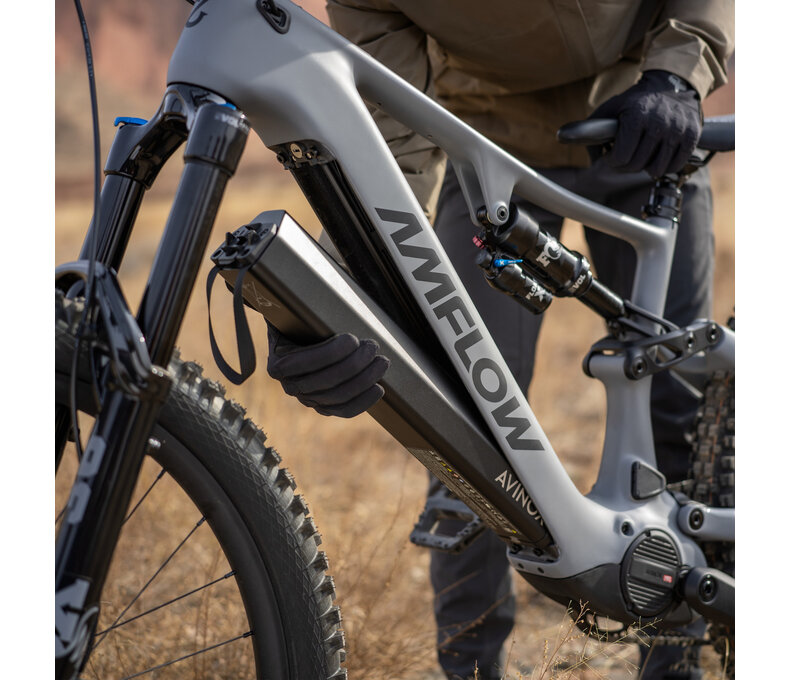

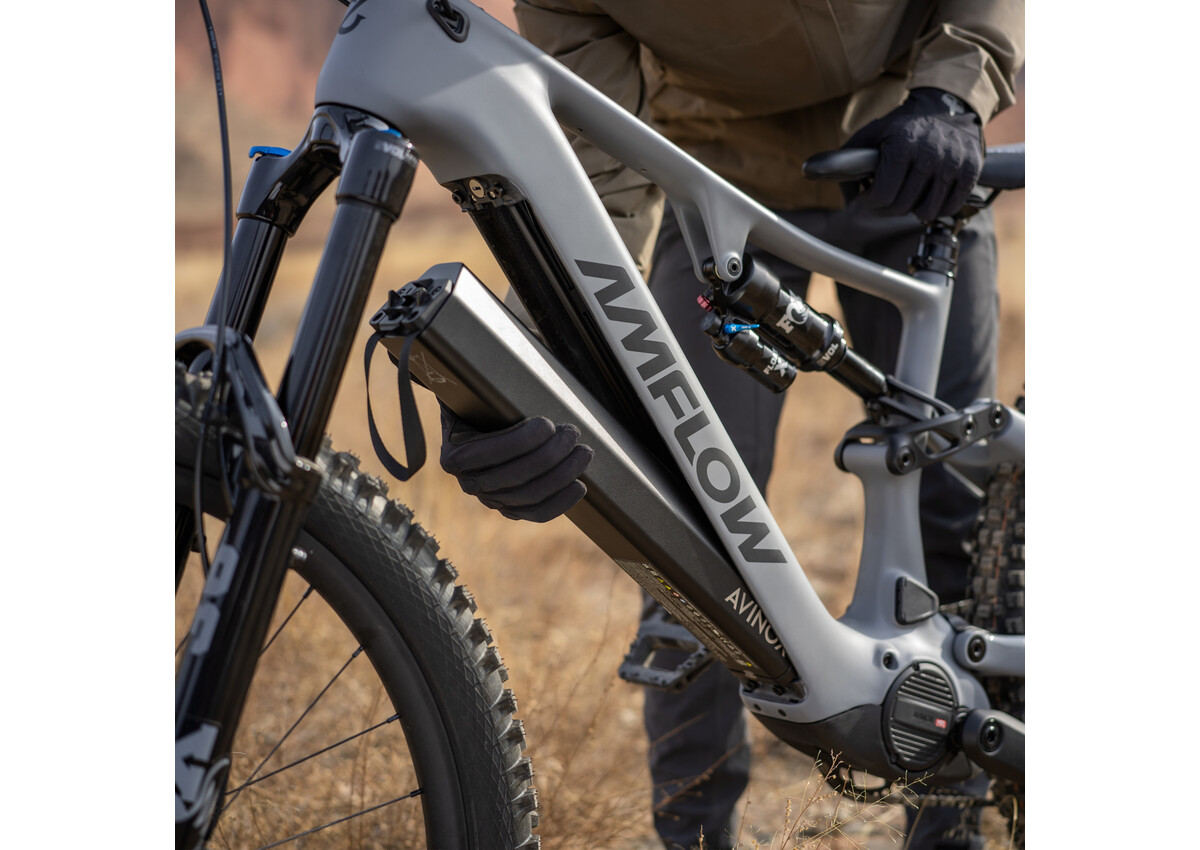

Quick Swap, Easy Recharge

Amflow PR supports independent battery removal for charging and quick swapping, flexibly solving the problem of finding charging stations and enabling rapid energy replenishment on long trips. While reducing maintenance costs, it also makes every departure more worry-free.

SPECS:

Frame:
Amflow PR Carbon Frame
Moss Green
40 adjustable geometry configurations
Compatible with 27.5″ and 29″ rear wheels

E-Bike System:
Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Charger: 4A/168W

Rear shock:
FOX Float Rhythm
custom tune, LSR adjustment, 210×55mm, air shock

Fork:
FOX AWL HD Sport
160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

Drivetrain:

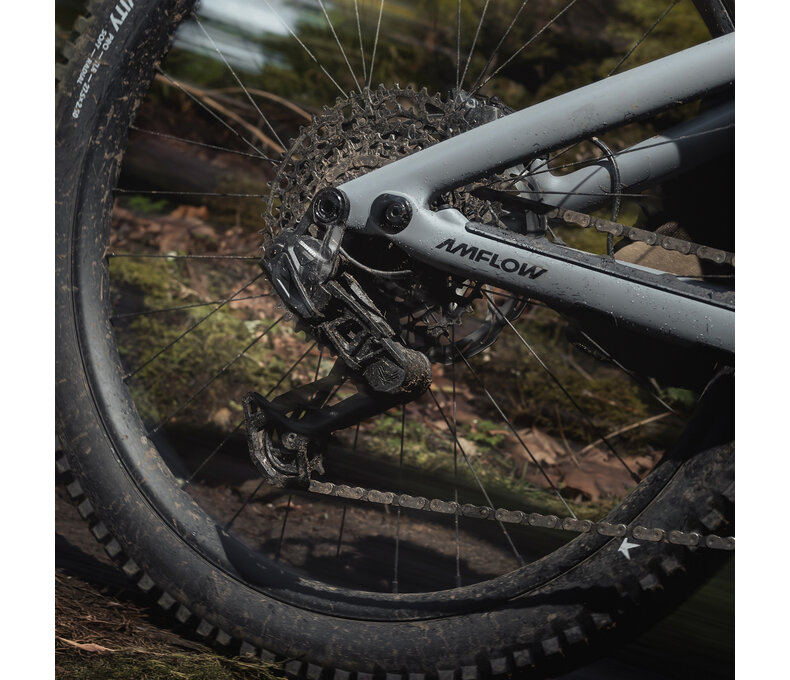

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes:
Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom
Tektro Sensor Rotor (203mm, 2.3mm)

Wheels:
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Tires:
Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR
Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR

Handlebar:
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep

Grips:
Amflow Enduro Grip 2 Lock-on Grips

Stem:
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm

Saddle:
Amflow Mountain Saddle

Dropper Post:
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M Frame: 190mm
L/XL Frame: 210mm
XXL Frame: 230mm

Accessories:

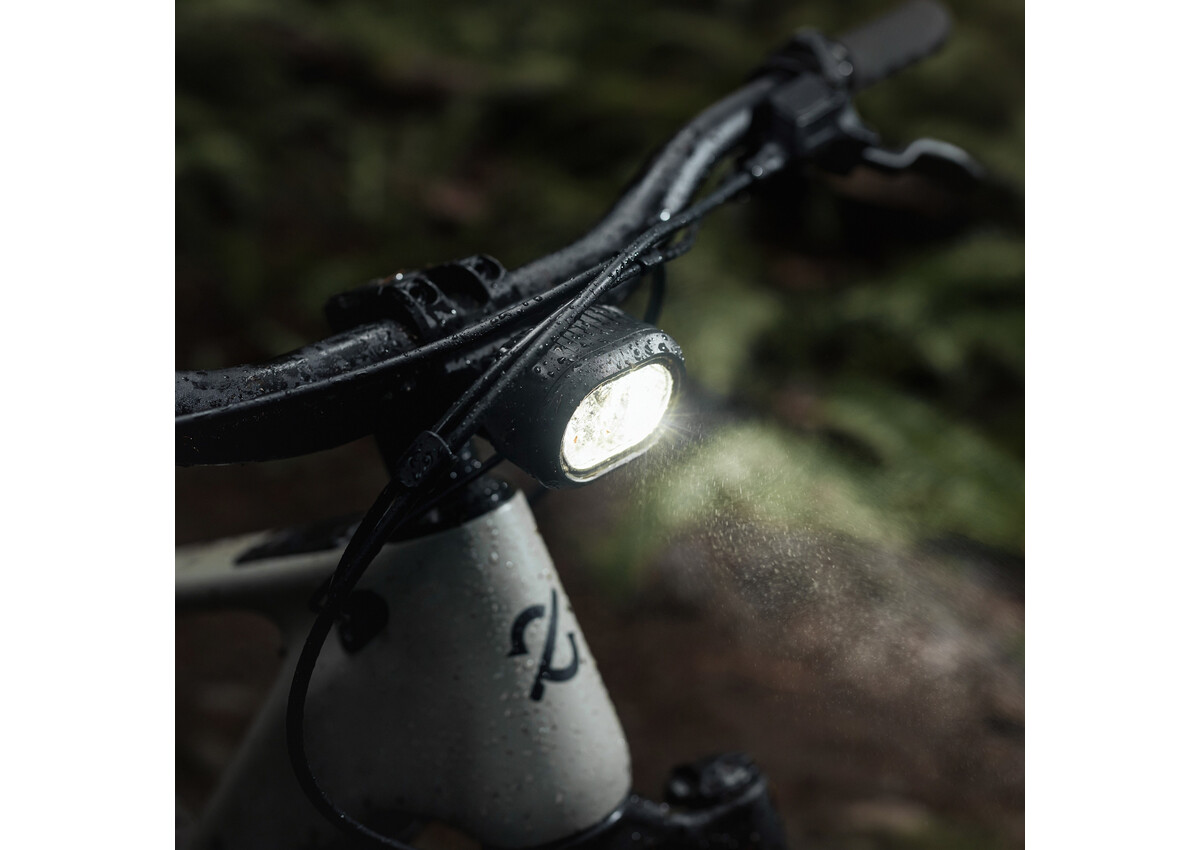

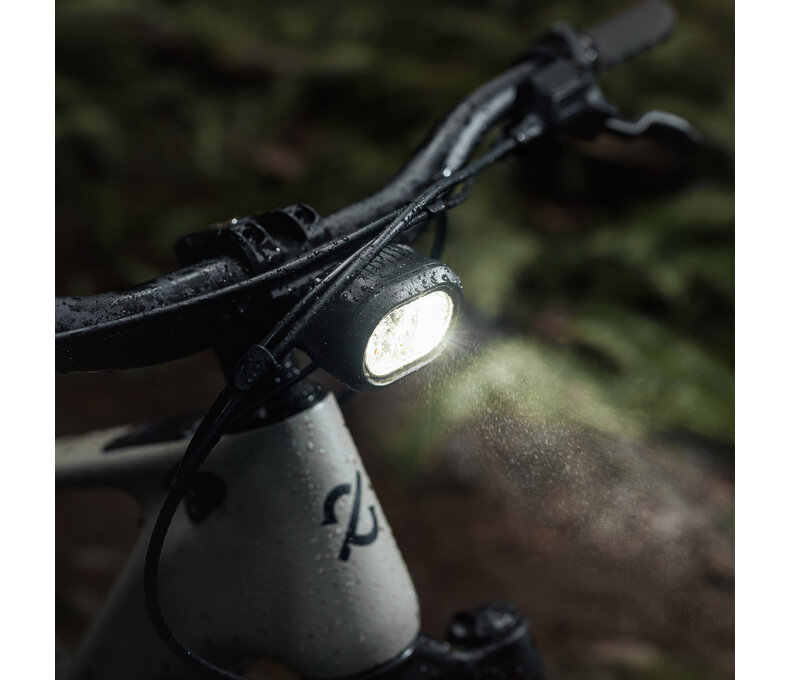

Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump

GEOMETRY:
Sizes: M / L / XL / XXL
Reach: 452mm / 475mm / 500mm / 527mm
Stack Height: 626mm / 637mm / 649mm / 662mm
Standover Height: 782.5mm / 788.9mm / 791.5mm / 799.1mm
Front Center: 787.7mm / 816mm / 846.8mm / 879.9mm
Fork Length: 576mm / 576mm / 576mm / 576mm
Wheelbase: 1227.9mm / 1256.2mm / 1287mm / 1320.1mm
Chainstay Length: 440/452mm / 440/452mm / 440/452mm / 440/452mm
Bottom Bracket Drop: 10.4/24.5mm / 10.4/24.5mm / 10.4/24.5mm / 10.4/24.5mm
Bottom Bracket Height: 349.5mm / 349.5mm / 349.5mm / 349.5mm
Effective Top Tube Length: 596.5mm / 623.5mm / 652.9mm / 684.6mm
Head Tube Angle: 64.5° / 64.5° / 64.5° / 64.5°
Head Tube Length: 111.4mm / 123.6mm / 136.9mm / 151.3mm
Actual Seat Tube Angle: 70° / 70° / 70° / 70°
Effective Seat Tube Angle: 77° / 76.9° / 76.7° / 76.6°
Seat Tube Height: 405mm / 425.3mm / 445mm / 464mm
