Description

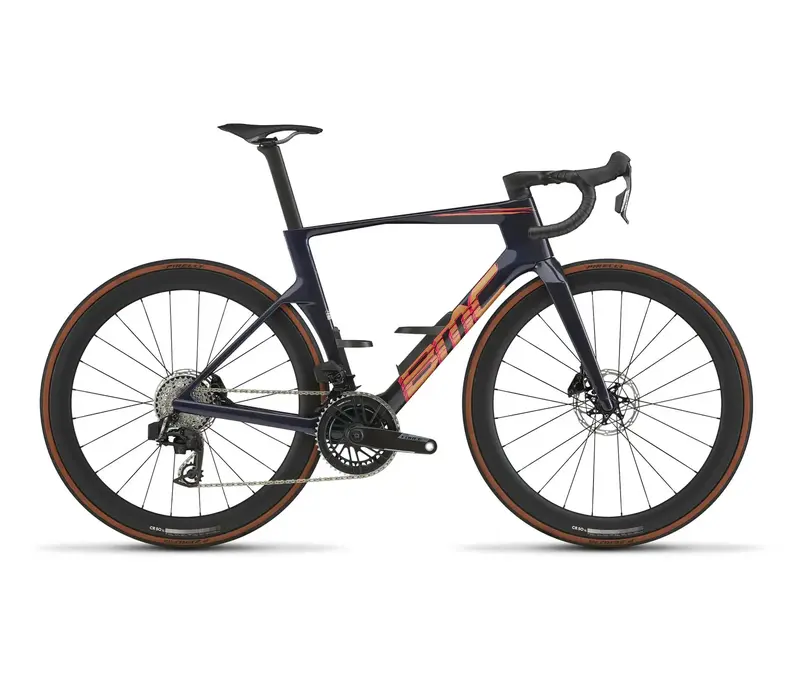

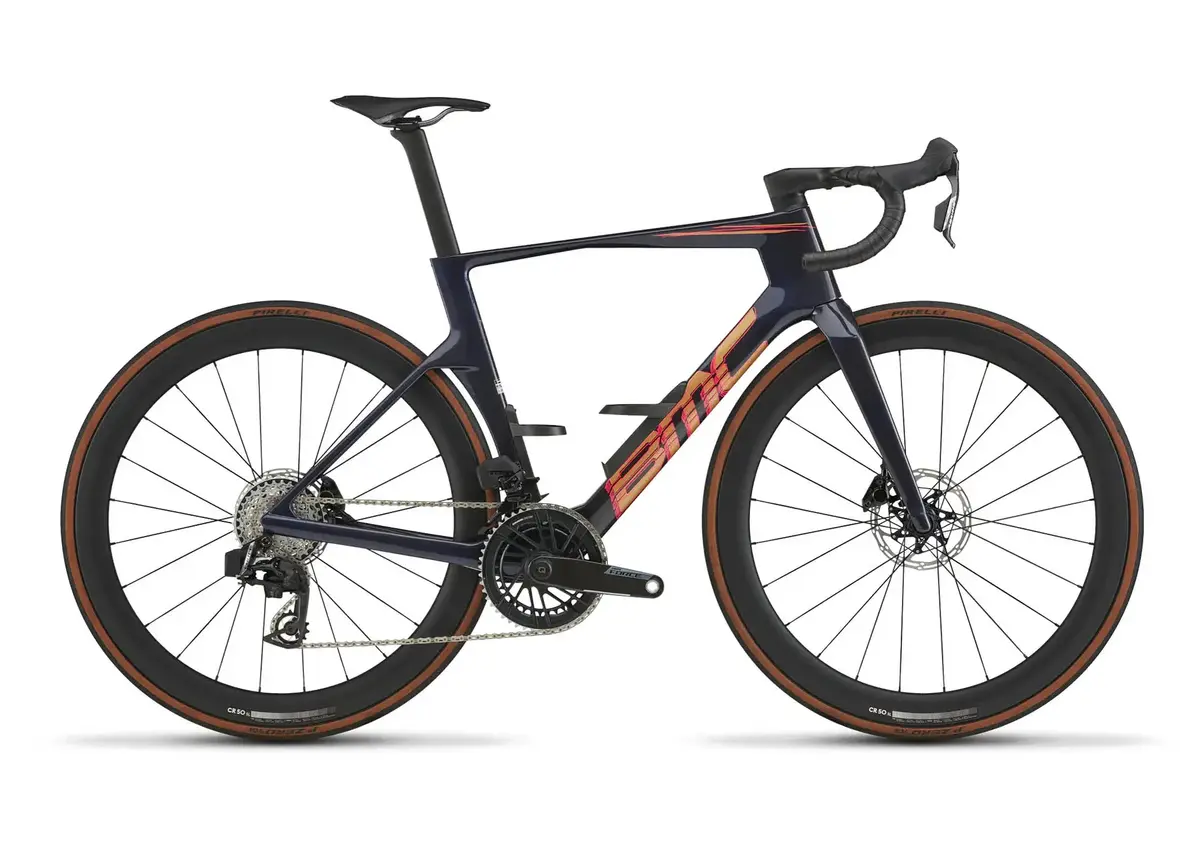

The Teammachine R 01 THREE is engineered for an uncompromising race performance, shaped by the same obsessive development and Red Bull Advanced Technologies collaboration as the flagship models. Speed remains the priority – everywhere, all the time. Our 01 Premium Carbon layup keeps this frameset exceptionally light and brutally efficient, with stiffness exactly where a racer needs it. SRAM adds high-performance shifting and braking with their Force AXS groupset with power meter for real-time performance data. The low-stack ICS Aero Gen 2 cockpit and rapid CR 50 SL Carbon tubeless-ready wheelset form a fast, cohesive system that’s optimized to hold speed deep into the red. The wide-stance fork completes the picture, reducing drag and stabilizing airflow for confidence and control at full race speed.
Frameset
Frame:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Handlebar:
ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Selle Italia SLR Elite | Lightweight Tubular Steel Rails | 145mm
Drivetrain
Crankset:
SRAM Force AXS (FC-FRC-P-E1)
Chainrings:
48-35T
Power Meter:
SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1)
Cassette:
SRAM Force (CS-XG-1270-E1)
Cassette Size:
10-36T
Chain:
SRAM Force (CN-FRC-E1)
Front Derailleur:
SRAM Force AXS (FD-FRC-E-E1)
Rear Derailleur:
SRAM Force AXS (RD-FRC-E-E1)
Shifters:
SRAM Force AXS (ED-FRC-E1)
Gears:
2 x 12
Bottom Bracket:
SRAM DUB PressFit Bottom Bracket (BB-DUB-PF-A1)
Brakes
Brake Levers / Calipers:
SRAM Force AXS (ED-FRC-E1)
Rotors:
SRAM CenterLine X Rotor (RT-CLN-X-A2)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 50 SL Carbon | Tubeless Ready | 50mm
Hubs (F/R):
TXC-812 & TXC-2406 Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
7.5kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
