Description

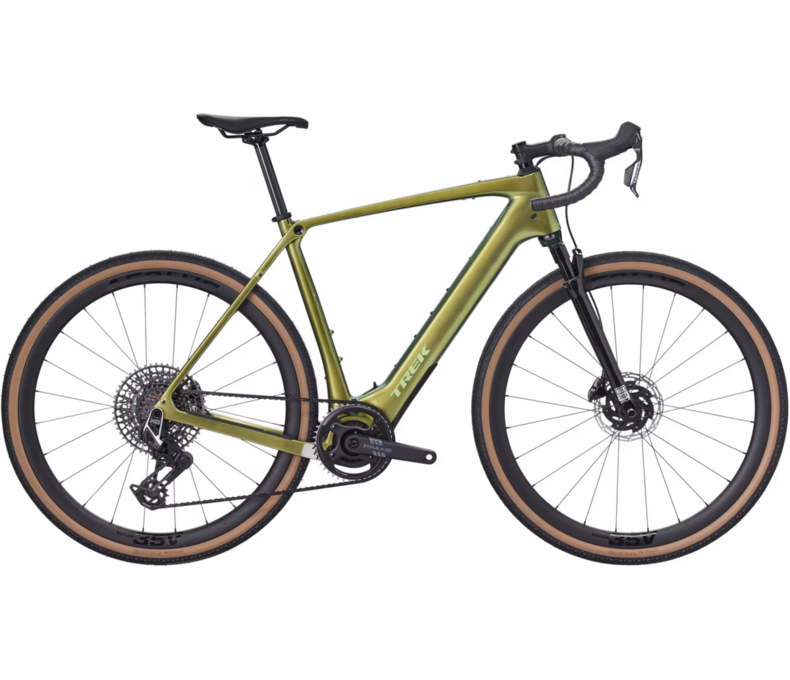

Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most far-out adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth and quiet boost up to 28mph, while a 40mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost damp vibrations while keeping the weight down.
Specs
| Frame | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |
|---|---|
| Fork | RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel |
| Wheels | Front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle Rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Crankset | Size: S Praxis Alloy, 165mm length Size: M, ML Praxis Alloy, 170mm length Size: L, XL Praxis Alloy, 172.5mm length |
| Shifters | SRAM Force AXS E1 |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Cassette/Freewheel | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Rotors | SRAM Paceline X, rounded, centerlock, 160mm |
| Handlebars | Size: S Bontrager Pro Gravel, 40cm width Size: M, ML Bontrager Pro Gravel, 42cm width Size: L Bontrager Pro Gravel, 44cm width Size: XL Bontrager Pro Gravel, 46cm width |
| Tape/Grips | Bontrager Supertack Perf tape |
| Stem | Size: S, M Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length Size: ML, L Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length Size: XL Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Pedals | Sold Separately |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 360Wh |
| Controller/Display | TQ color LED display with Bluetooth & ANT+ connectivity |
| Charger | TQ 4A charger |
* Subject to change without notice.
