Description

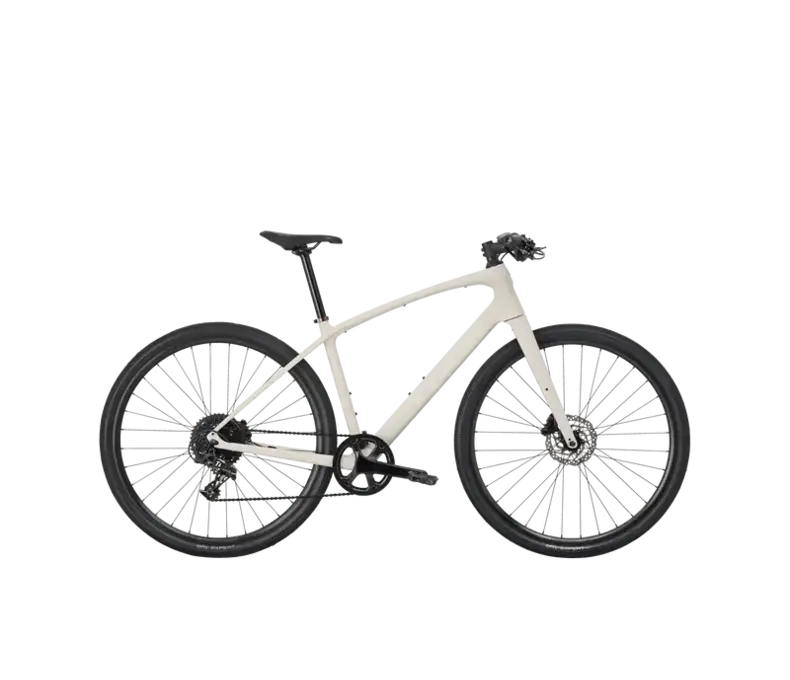

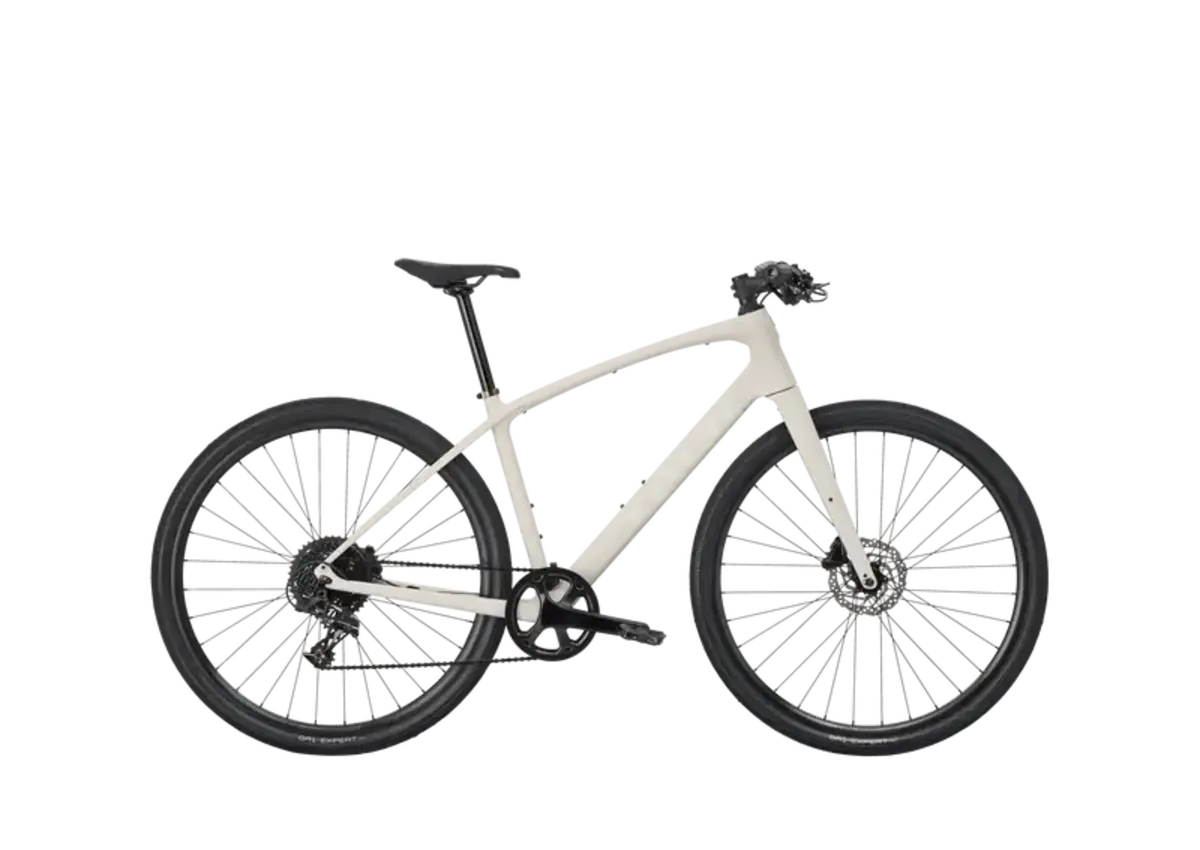

FX Sport SL 5 is a carbon fiber fitness bike for riders who want the speed of a lightweight road bike with the comfort and control of a flat handlebar. It has an upgraded high-quality drivetrain, hydraulic disc brakes, and tubeless-ready rims making it perfect for everything from solo workouts to speedy group rides.
Technical Specifications
| Frame | 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew |
| Fork | Carbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew |
| Weight | M - 10.60 kg / 23.37 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Shifter | SRAM Apex, 11 speed |
| Rear derailleur | SRAM Apex 1, long cage, 42T max cog |
| *crank | Size: XS, S Prowheel alloy, 42T narrow-wide ring, 170mm lengthSize: M, L, XL Prowheel alloy, 42T narrow-wide ring, 175mm length |
| Cassette | microSHIFT XLE, 11-42, 11 speed |
| Chain | KMC X11 |
| Pedal | Bontrager City pedals |
| Max chainring size | 1x: 44T, 2x: 46/32 |
| Hub front | Formula CL-51 alloy, 100x5mm |
| Skewer front | 135x5mm bolt-on |
| Hub rear | Formula CL-52 alloy, 135x5mm |
| Skewer rear | 169x5mm bolt-on |
| Rim | Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Max tire size | 700x42mm |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
| *handlebar | Size: XS, S Bontrager alloy, 31.8mm, 15mm rise, 600mm widthSize: M, L, XL Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
| Grips | Trek Ergonomic Pro, lock-on |
| *stem | Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: S, M Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm lengthSize: L, XL Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length |
| Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake rotor | Shimano RT10, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Subject to change without notice.
