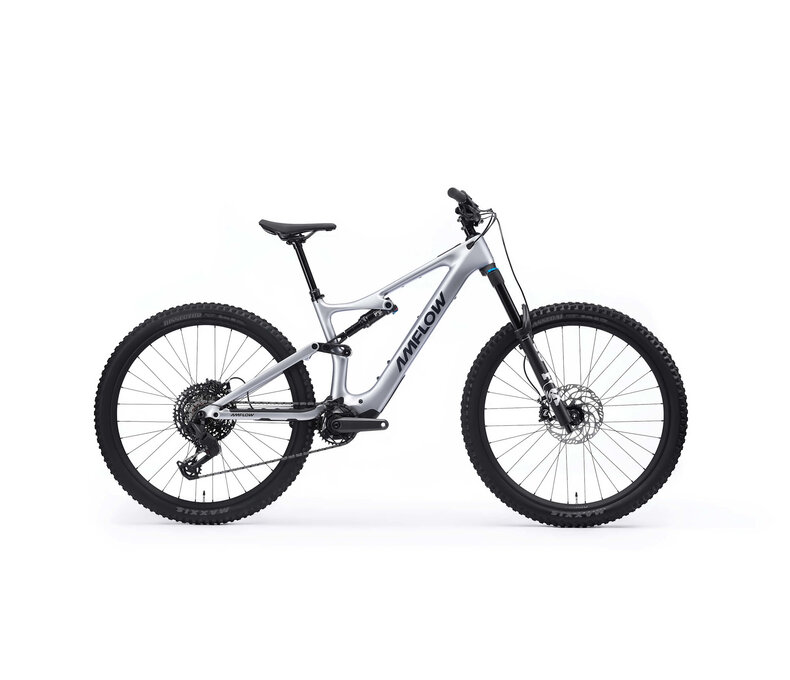

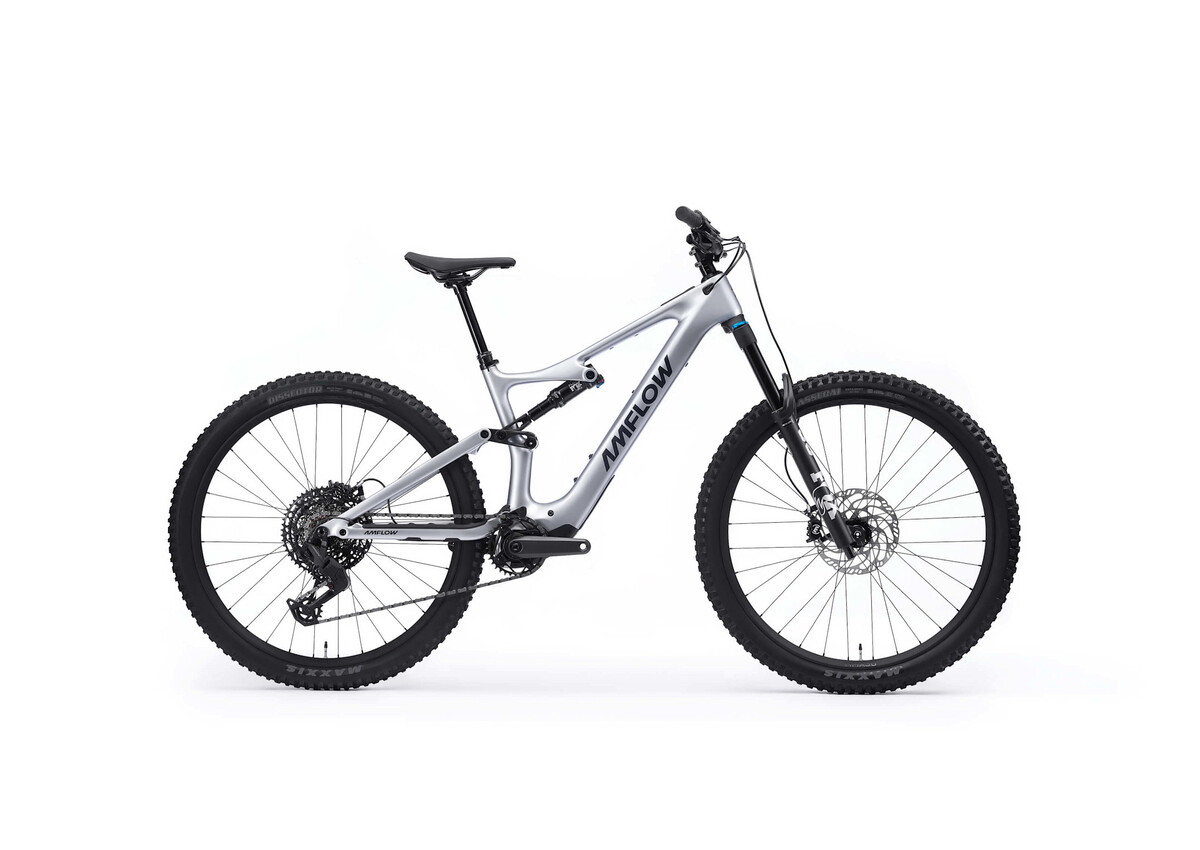

Amflow PL Carbon (800Wh)
Description
The Amflow PL electric mountain bike offers 105 N·m of max continuous torque in an ultra-light build weighing 19.2 kg. With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.
A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.
Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, for breathtaking speed and agility.
Powerful Drive, Smooth Assistance
The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.
For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque.
Amflow PL Carbon (800Wh)
Frame
Amflow PL Carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels
E-Bike System
Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
Fork
FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake
Transmission
Rear Derailleur: SRAM GX Eagle 12-speed
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click
Cassette: SRAM PG-1230, 11-50T
Chain: SRAM NX Eagle
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Wheels
Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar
Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Stem
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm
Saddle
Selle Royal SRX Plus
Seatpost
KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm
Accessories
Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
