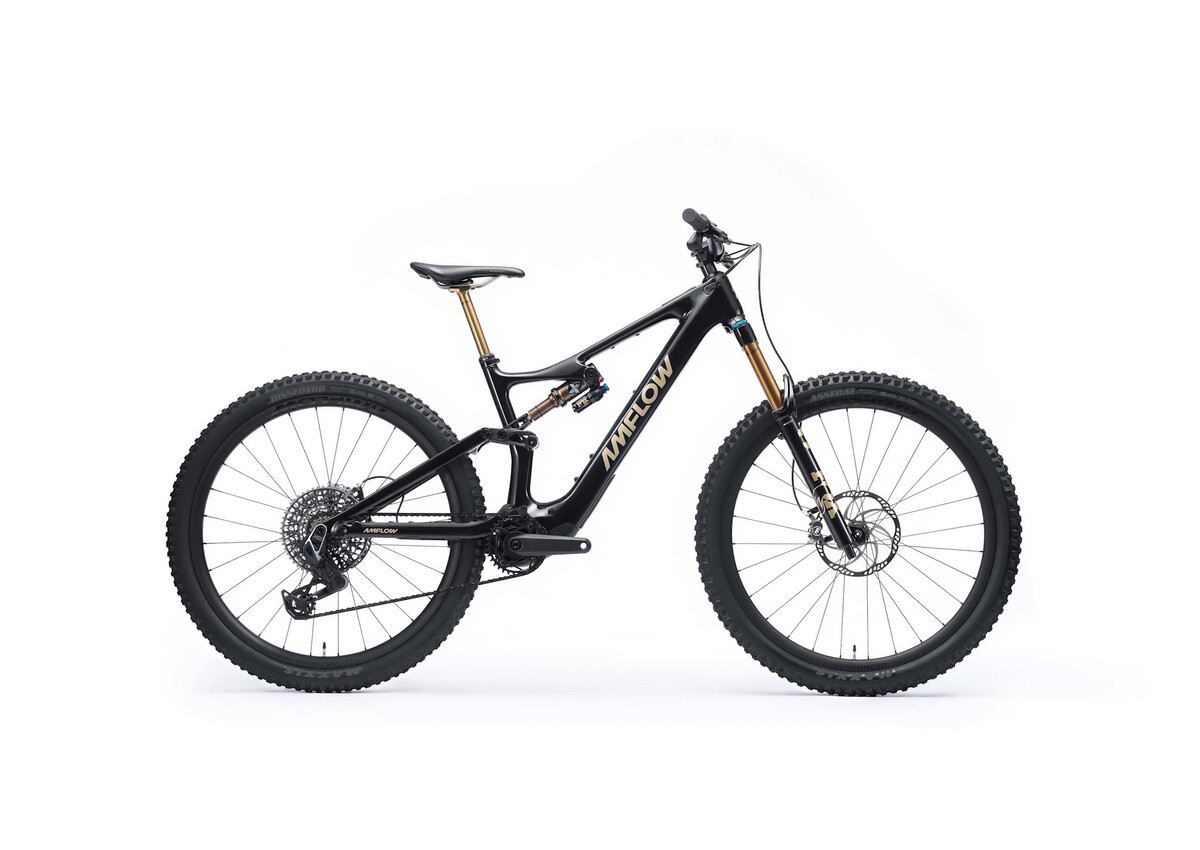

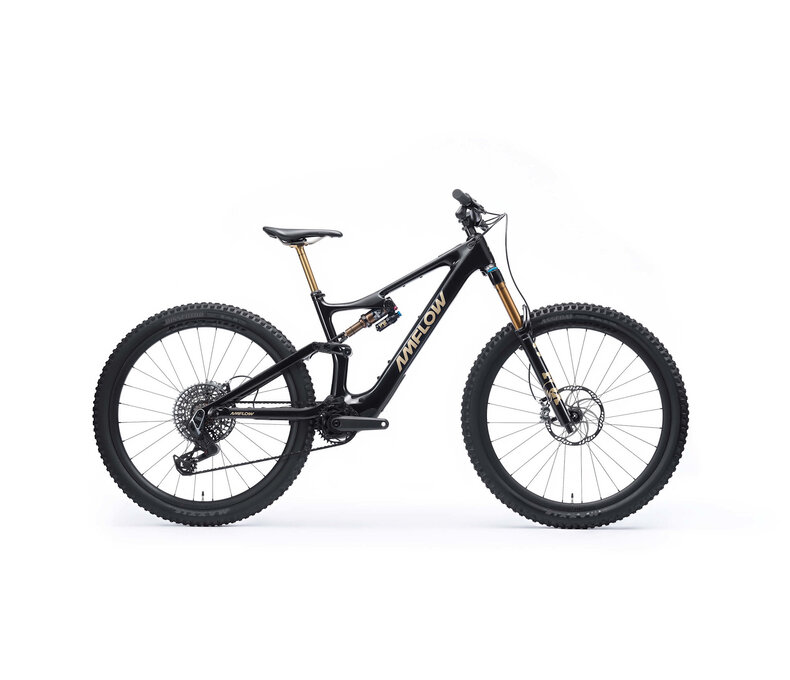

Amflow PL Carbon Pro (600Wh/800Wh)
Description
The Amflow PL electric mountain bike offers 105 N·m of max continuous torque in an ultra-light build weighing 19.2 kg. [1] With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.
A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.
Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, [2] for breathtaking speed and agility.
Powerful Drive, Smooth Assistance
The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.
For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque. [4]
High-Capacity Battery, Extended Range
The Avinox Drive System's battery weighs just 2.87 kg [2] and features ultra-high energy density for extended range.
Amflow PL Carbon Pro (600Wh/800Wh)
Frame
Amflow PL Carbon Frame
Cosmic Black
150mm rear travel
Compatible with 27.5" and 29" rear wheels
E-Bike System
Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 600Wh/800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX FLOAT X Factory
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC
adjustment
Fork
FOX 36 Factory
160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake
Transmission
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Chain: SRAM X0 Eagle Transmission Flattop Chain
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Wheels
Amflow HMC-30
Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready
Spokes: SAPIM E-Light Straightpull
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar
Amflow Enduro Carbon Handlebar
25mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Stem
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm
Saddle
Ergon SM PRO M/L
Seatpost
Fox Transfer Factory, Travel adjustable in 5mm
M: 125-150mm
L/XL: 155-180mm
XXL: 185-210mm
Accessories
Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
