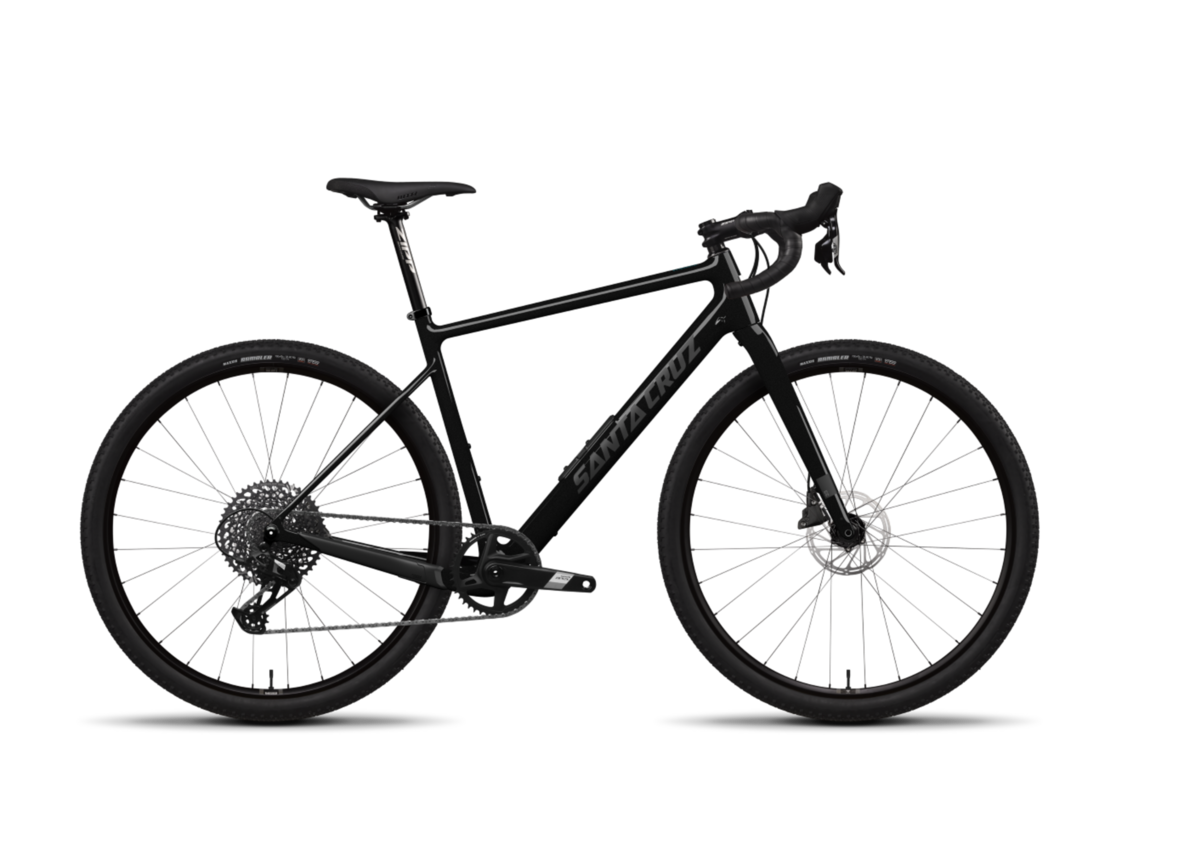

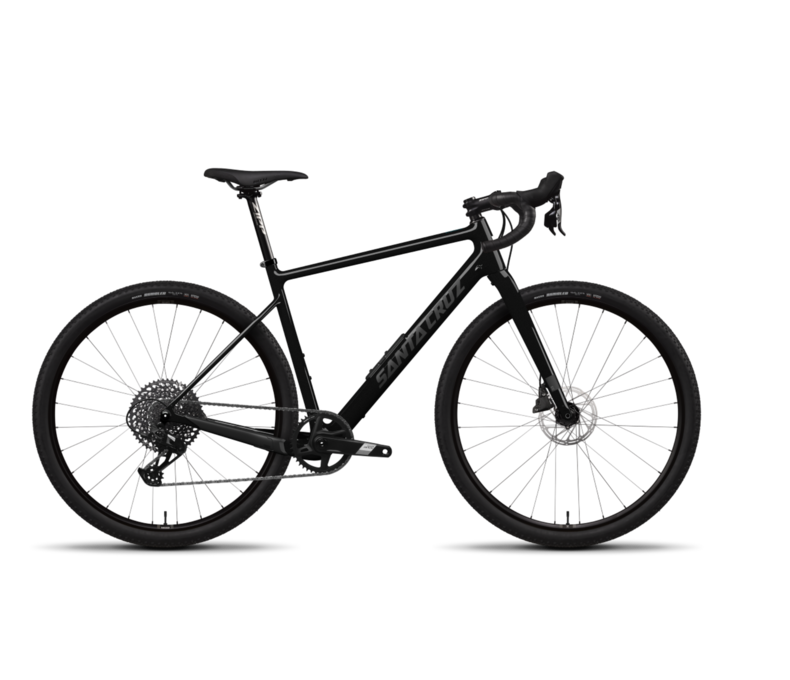

Santa Cruz Stigmata 4 CC Apex
$3,999.00
Availability: In Stock
The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine.
Description
The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.
FEATURES:
- Dropper post compatible. Get that thing out of the way for hair-brained riding!
- Long reach – designed around 70mm stems – with a slack head tube angle. Adapting progressive MTB geo for ultra off-road capabilities.
- Great rollover on fast rolling 700c wheels with up to 50mm tire clearance. Choose fast or fun tires. Or fast and fun tires.
- The Glovebox allows for extra room to stash the essentials, even with a full complement of frame bags.
- Low profile fender mounts. If you don’t use fenders, you don’t want to see mounts. But when you want them, you got them.
- Third bottle mount on the downtube is the only extra mounting point. No unsightly riv-nut zits keeps frame clean and lightweight.
- No stem/headset cable routing and a standard IS tapered headset, so it’s easy to adjust fit or perform maintenance out in the field.
SPECS:
| Frame | Carbon CC Gravel |
| Fork | CC Carbon, 12x100mm Thru-Axle |
| Rims/Wheels | [F] WTB ASYM i25 28h 700c [R] WTB ASYM i25 28h 700c |
| Hubs | [F] DT Swiss 370, 12x100, Centerlock, 28h [R] DT Swiss 370, 12x142, XDr, Centerlock, 28h |
| Spokes | N/A |
| Tires | Maxxis Rambler, 700x45c, DC, EXO, TR |
| Crankset | SRAM Apex Mechanical, 1x12 |
| Chainrings | 42t |
| Bottom Bracket | SRAM DUB 68mm Road Wide BB |
| Chain | SRAM Apex, 12spd |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Apex Eagle, 12spd |
Cassette/Rear Cogs | SRAM XG1275 Eagle, 12spd, 10-50t |
| Shifters | SRAM Apex |
| Handlebars | Zipp Service Course 70 XPLR AL Bar |
| Stem | Zipp Service Course Stem, 70mm |
| Brakes | SRAM Apex |
| Pedals | Sold Separately |
| Saddle | WTB Silverado Medium, CroMo |
| Seat Post | Zipp Service Course, 27.2 |
| Extras | N/A |
*Product specifications are subject to change without notice.
Geometry:
| Size | S | M | L | XL | XXL |
| Rider Height | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'2" | 6'2" - 6'6" |
| Reach | 390mm | 405mm | 420mm | 435mm | 450mm |
| Stack | 564mm | 576mm | 600mm | 612mm | 631mm |
| HT Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| HT Length | 105mm | 120mm | 145mm | 160mm | 180mm |
| ST Angle | 74° | 74° | 74° | 74° | 74° |
| ST Length | 455mm | 485mm | 515mm | 545mm | 575mm |
| Rear Center | 430mm | 430mm | 430mm | 430mm | 430mm |
| Front Center | 625mm | 645mm | 668mm | 688mm | 710mm |
| BB Height | 278.5mm | 280.5mm | 280.5mm | 282.5mm | 282.5mm |
| BB Drop | 78mm | 76mm | 76mm | 74mm | 74mm |
| Wheelbase | 1043mm | 1063mm | 1087mm | 1108mm | 1130mm |
| TT Length | 552mm | 570mm | 592mm | 610mm | 631mm |
| Standover | 728mm | 753mm | 778mm | 804mm | 830mm |
