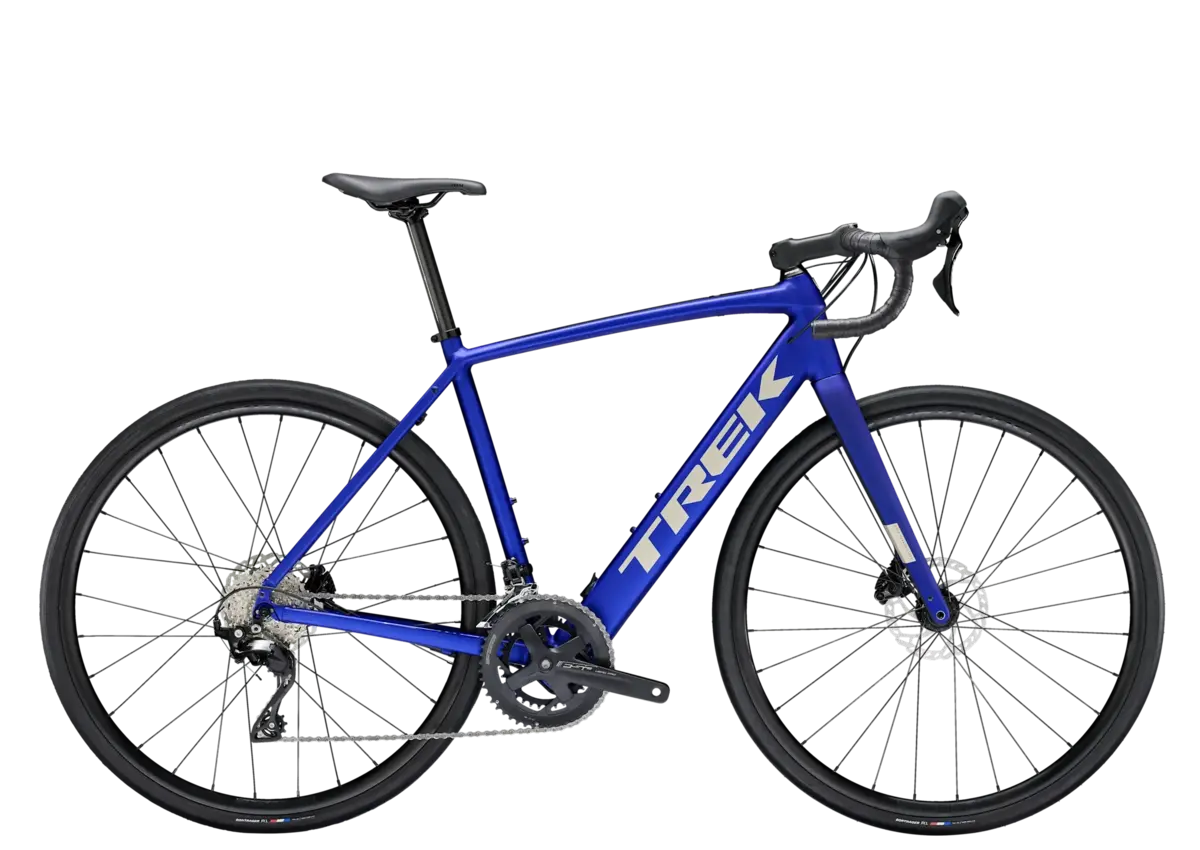

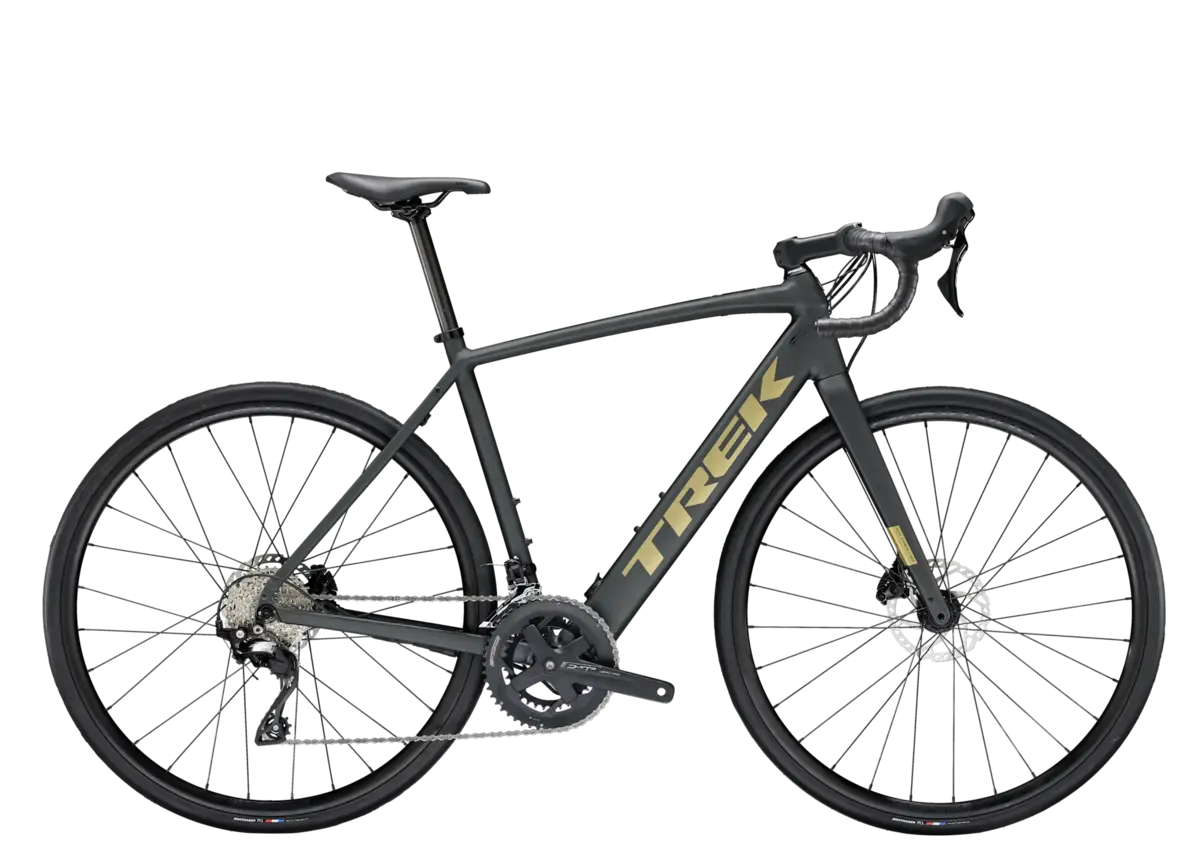

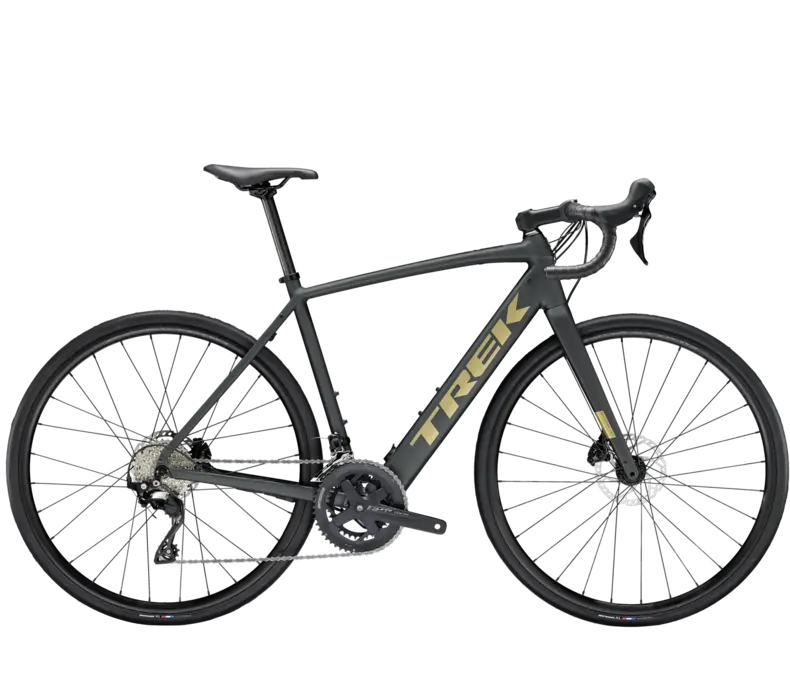

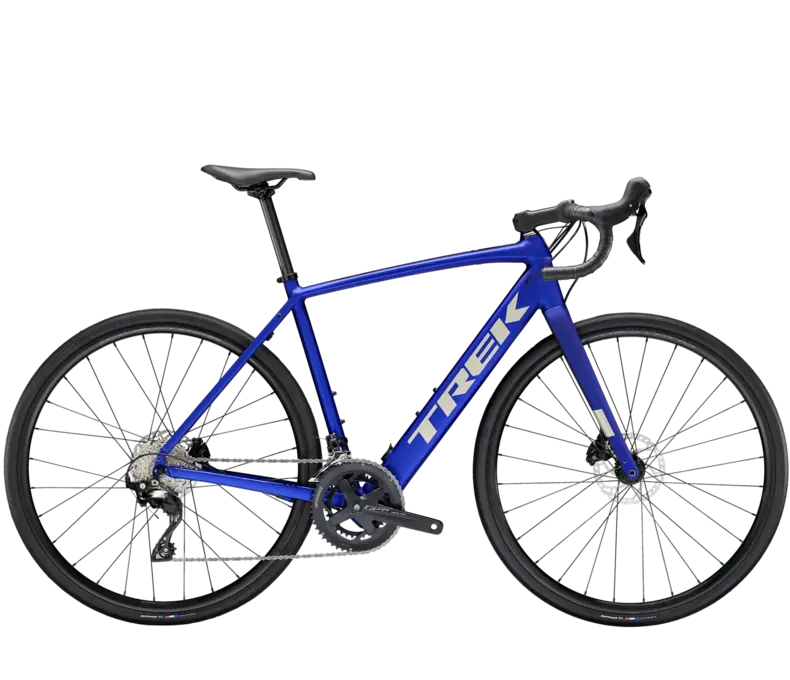

Trek Domane+ AL 5
Description
It's right for you if...
You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.
The tech you get
A lightweight aluminum frame and fork, a natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 20 mph with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x12 drivetrain, tubeless ready wheels, and vibration-absorbing Elite IsoZone handlebars.
The final word
Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.
Why you'll love it
- This e-road bike looks, rides, and feels more like a traditional road bike
- The HyDrive pedal assist system has a hub motor for a more natural ride feel
- Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display
- The stable Endurance Geometry delivers comfort and confidence
- An optional 250Wh Range Extender battery with a tool-free quick-mount system lets you easily swap your seat tube bottle cage for double the battery life
| Frame | 100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts |
|---|---|
| Fork | Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | 56 - 14.10 kg / 31.09 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery | 250Wh, integrated in down tube |
|---|---|
| Charger | 2A, 42V output, 100V-240V AC input |
| Motor | Hyena hub drive motor, 40Nm, 250W |
| Shifter | Shimano 105 R7120, 12 speed |
|---|---|
| Front derailleur | Shimano 105 R7100, 31.8mm clamp, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| *Crank | Size: 49 FSA Vero Pro, 50/34, 165mm length |
| Size: 52 FSA Vero Pro, 50/34, 170mm length | |
| Size: 54, 56 FSA Vero Pro, 50/34, 172.5mm length | |
| Size: 58, 61 FSA Vero Pro, 50/34, 175mm length | |
| Bottom bracket | Torque sensor, threaded, 110mm spindle |
| Cassette | Shimano 105 7101, 11-34, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Max chainring size | 2x: 50/34 |
| Hub front | Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 28-hole, 21mm width, Presta valve |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Max tire size | 38mm without fenders, 32mm with fenders |
| Saddle | Bontrager Verse P3, steel rails |
|---|---|
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| *Handlebar | Size: 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width |
| Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width | |
| Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width | |
| Size: 58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width | |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length | |
| Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length | |
| Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length | |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake rotor | Shimano RT66, 6-bolt, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
