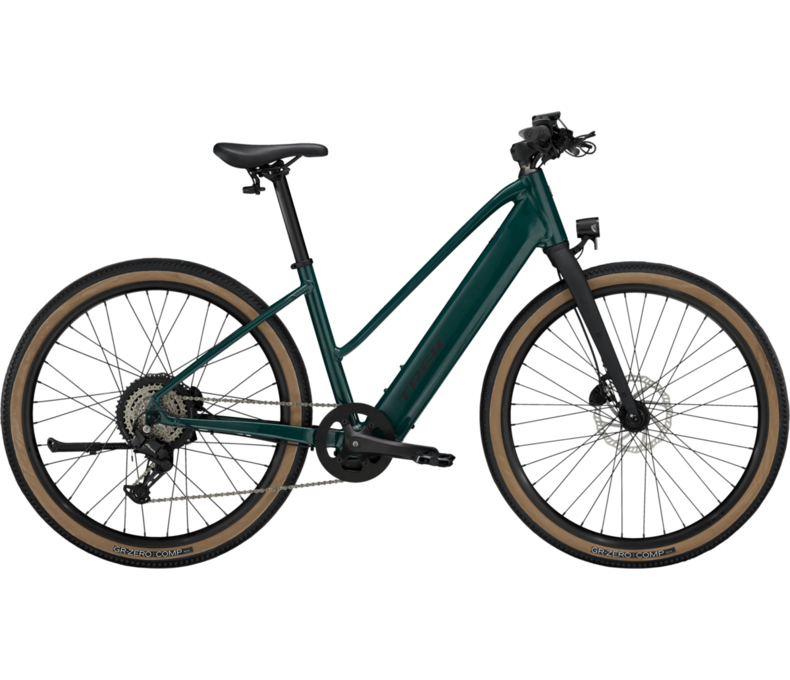

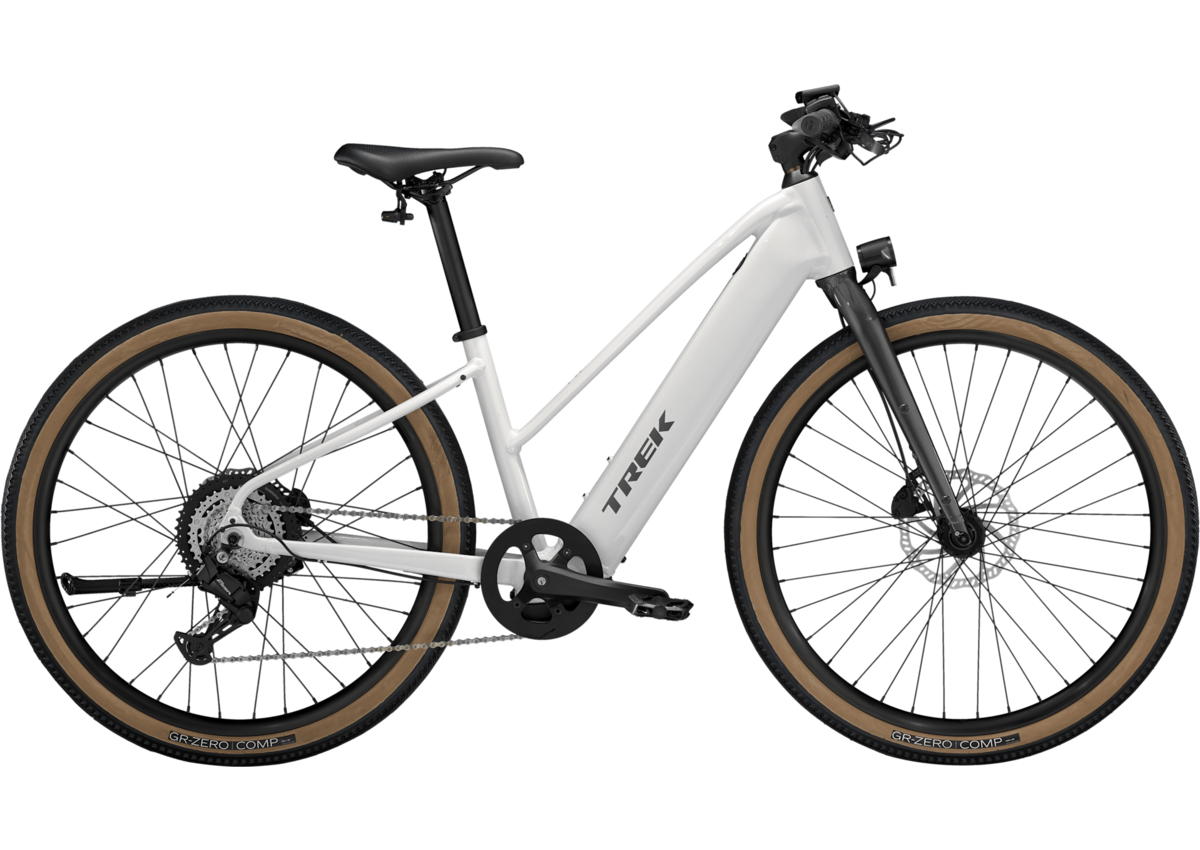

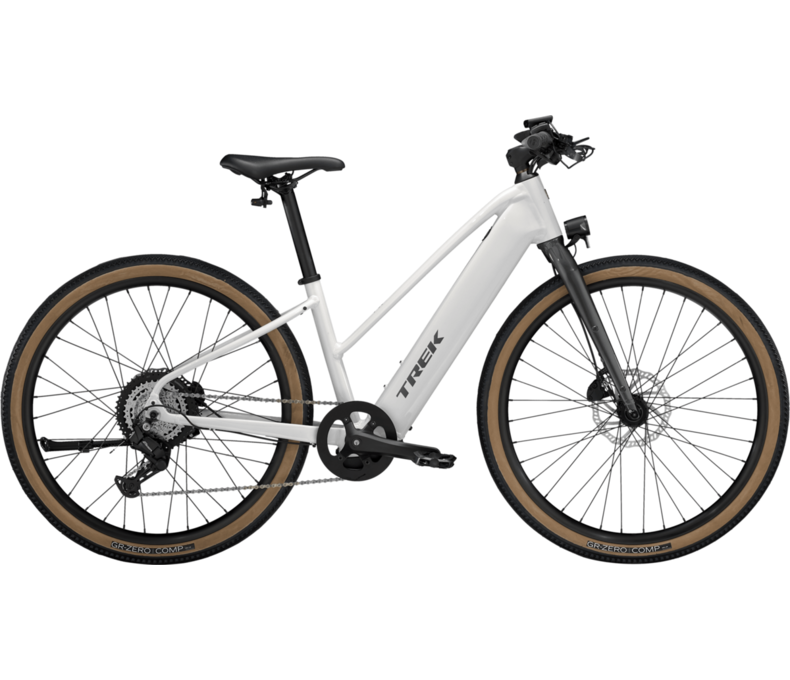

FX+ 1S All-Road mid-step is a versatile and fast throttle e-bike built for cruising through town with a smile, ear-to-ear. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.
You want an e-bike that adds ease to everything, from getting up to speed to charging the battery between rides. You want confident, stable handling on bike paths and rail trails, plus lights and turn signals to boost safety.
A lightweight Alpha Gold Aluminum frame with mid-step geometry and a Hyena hub-drive motor capable of speeds up to 20mph with the throttle or 28mph with pedal assist. A 540Wh integrated battery and full-color display, plus a portable wall-mount magnetic charger. Integrated lights, turn signals with brake light function, and a kickstand. It's finished off with 8-speed Shimano ESSA shifting, wide and stable 50mm tires, and hydraulic disc brakes.
If you want a city e-bike that makes cruising through town an absolute breeze, reach for FX+ 1S Midstep. This throttle e-bike gives you the power you need to get up to speed, plenty of confidence for riding anywhere, and all the bells and whistles you want, like integrated lights and easy magnetic charging.
- You get the convenience of a throttle for accelerating and the smooth support of pedal assist while you ride
- The portable magnetic wall-mount charger makes getting your battery ready to ride a hassle-free process
- Wide, stable tires deliver tons of traction and confidence for riding through town, on paths, and on rail trails
- Integrated lights, turn signals, and brake light help you see and be seen wherever you roll
- You get low-maintenance, reliable shifting thanks to Shimano's 8-speed ESSA drivetrain
Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing |
---|---|
Fork | Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
Rims | Alloy double wall, 36h |
Hubs | Alloy low-flange w/6-bolt disc, 36h, w/QR |
Axles | 132x5mm QR, ThruSkew |
Tires | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm |
Crankset | Alloy, 40T steel chainring, 170mm length |
Shifters | Shimano M315, 8 speed |
Rear Derailleur | Shimano ESSA U2000 |
Cassette/Freewheel | Shimano HG400, 11-45, 8 speed |
Chain | KMC Z8.3 |
Brakes | Rush BH-286 hydraulic disc, 180mm rotor |
Handlebars | Small/Medium: Bontrager alloy, 31.8mm, 15mm rise, 690mm width Large: Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
Tape/Grips | Bontrager XR Endurance Comp, lock-on |
Stem | Small/Medium: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length Large: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
Seatpost | Small/Medium: Bontrager alloy, 31.6mm, 12mm offset, 330mm length Large: Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
Saddle | Bontrager Sport Women's |
Pedals | Bontrager City pedals |
Accessories & Extras | Herrmans MR8, 180 lumen, 60 lux, LED headlight // Sate-Lite M-15 with turn signal and brake light function, Adjustable length alloy kickstand |
Motor | Hub drive motor, 60 Nm, 500W, 36H, black |
Battery | 520Wh, integrated in down tube |
Controller/Display | LCD display |
Charger | Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input |
* Subject to change without notice.
